Description

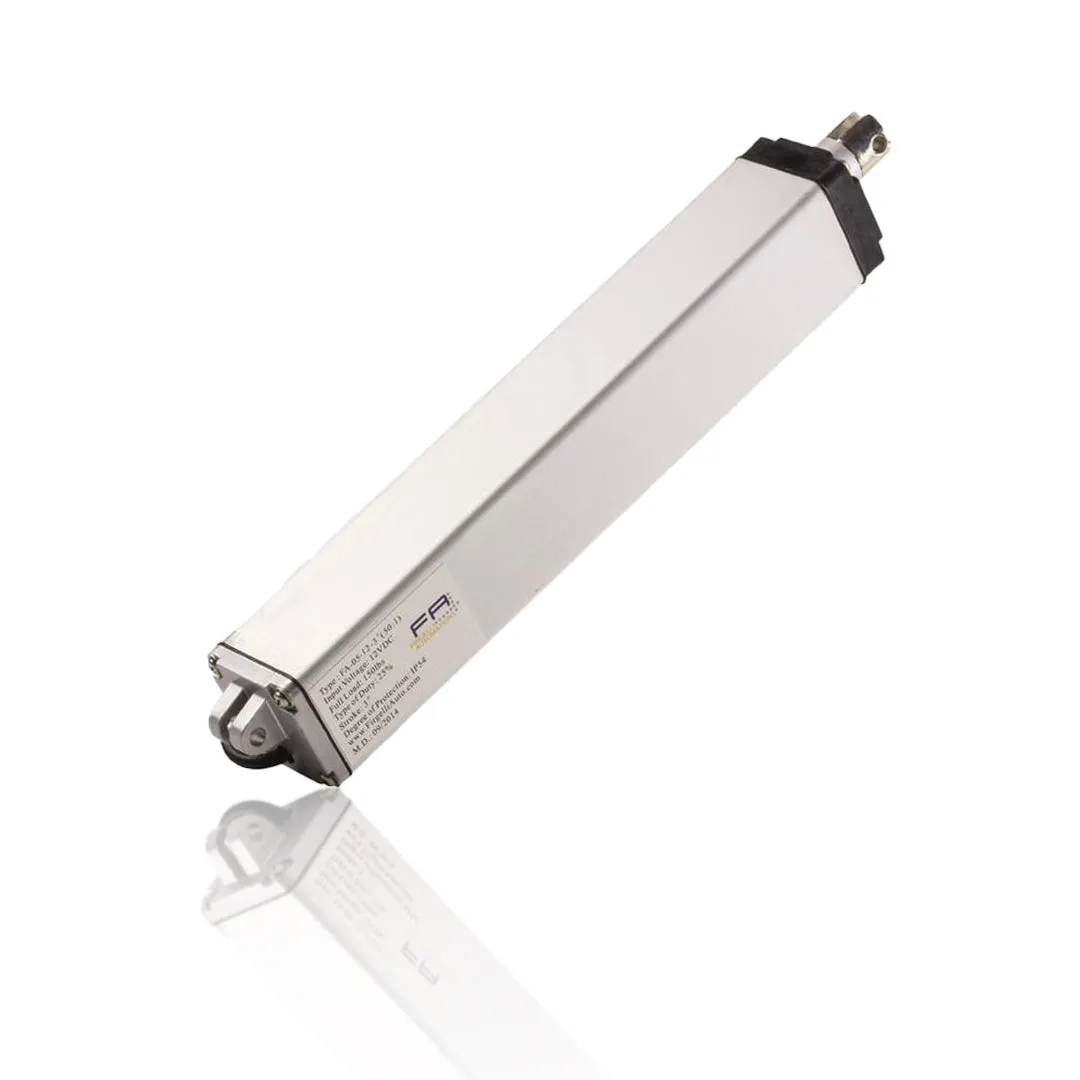

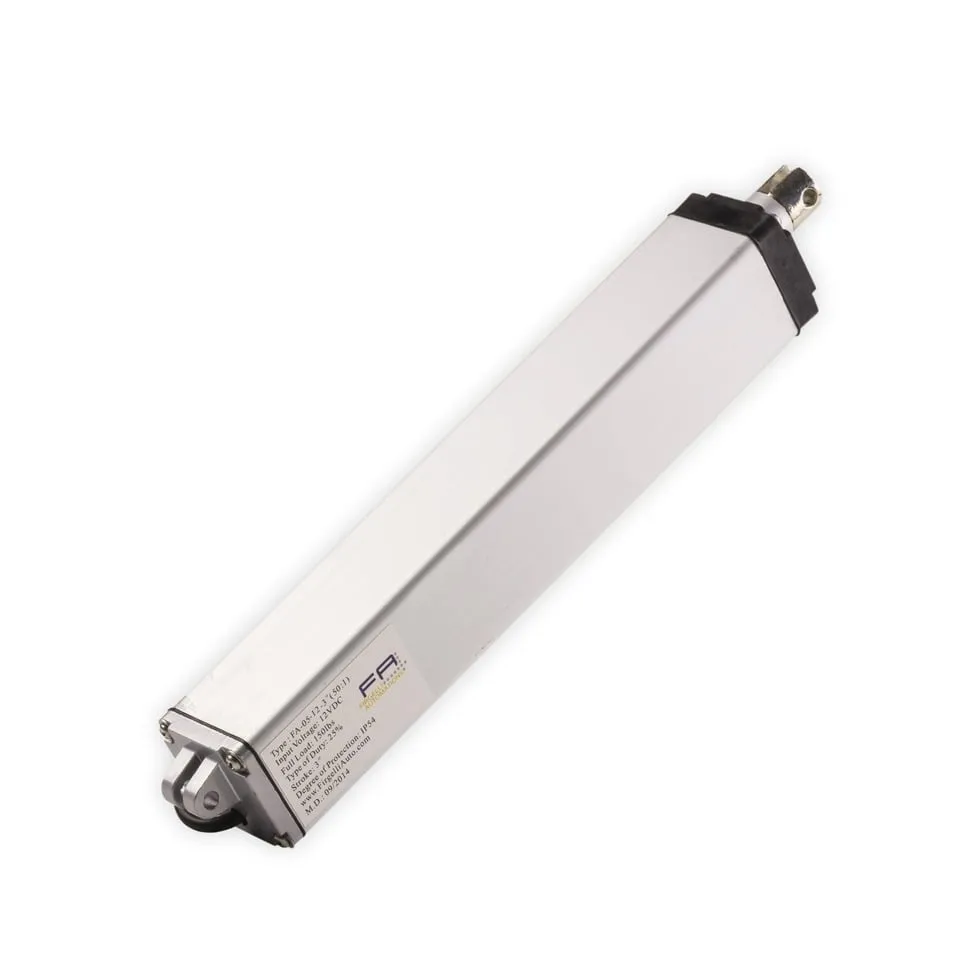

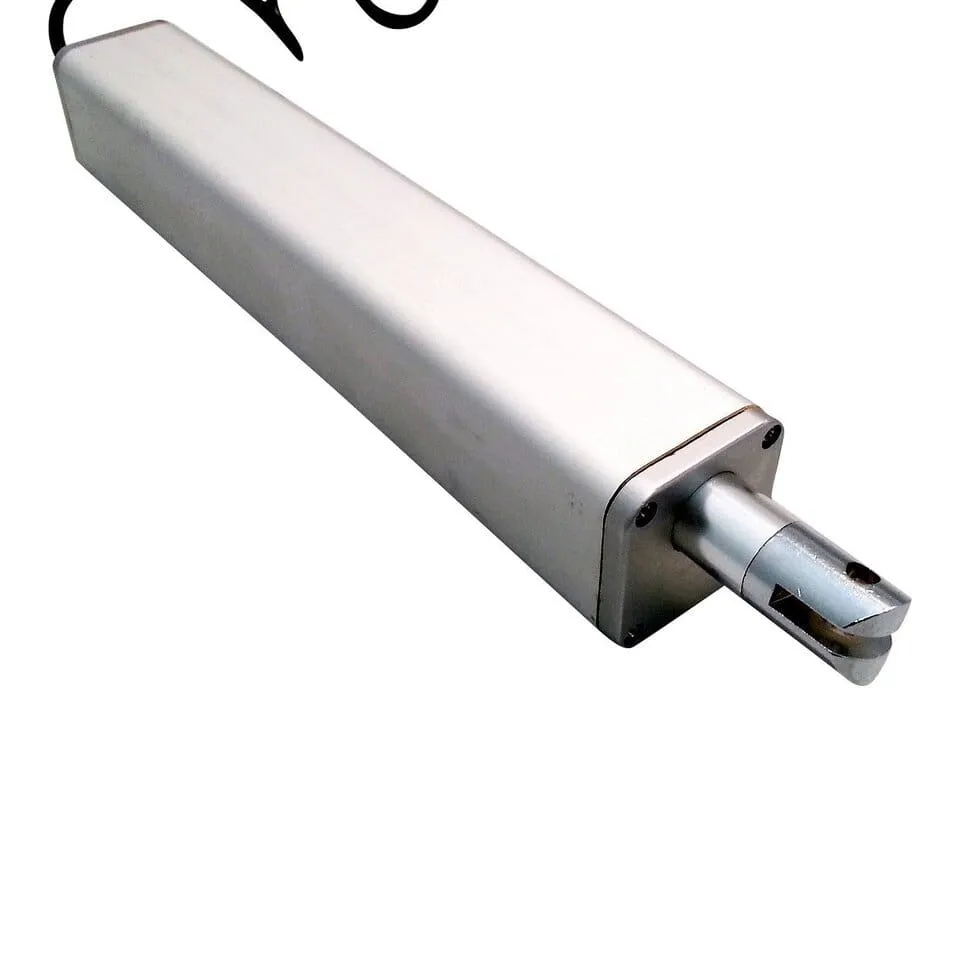

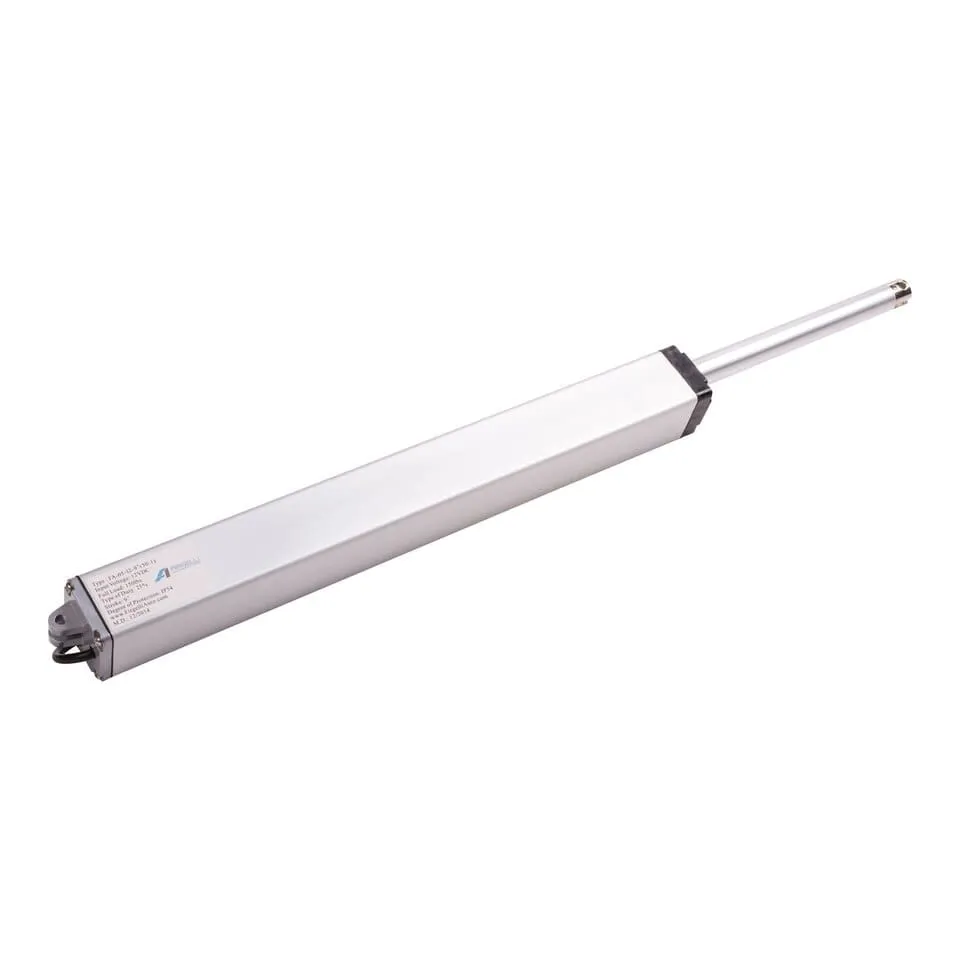

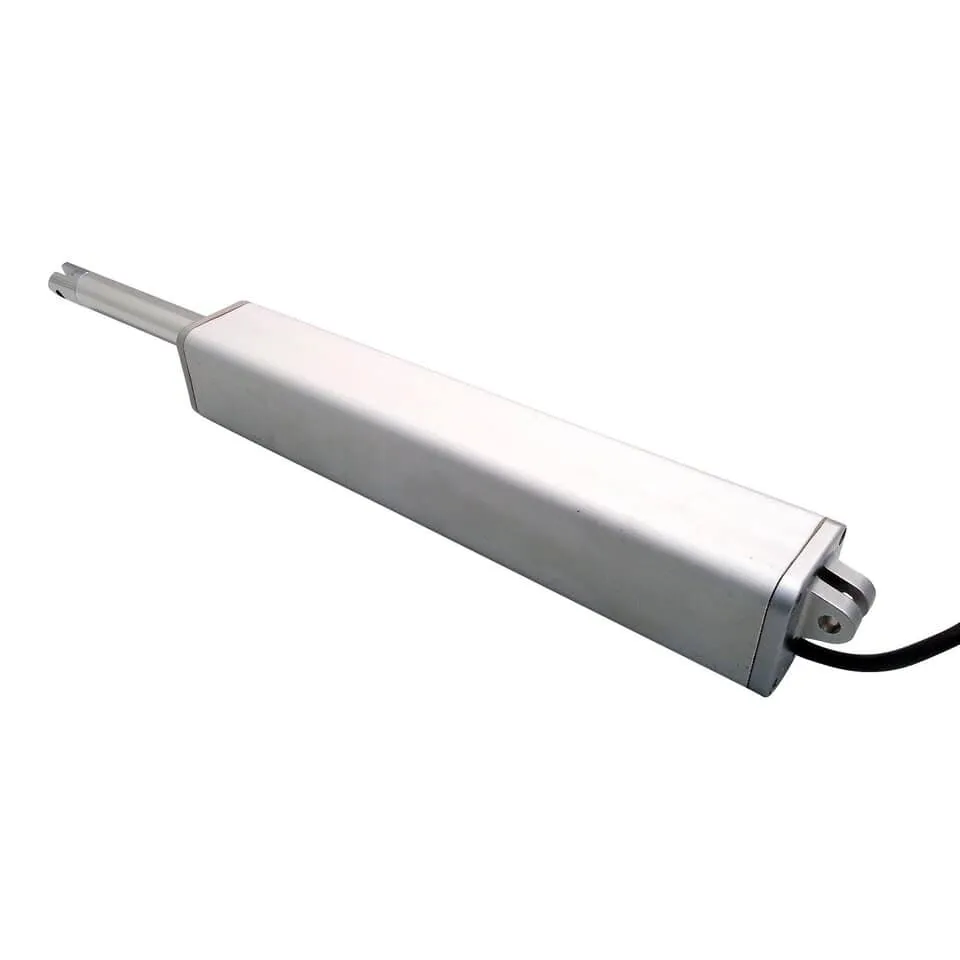

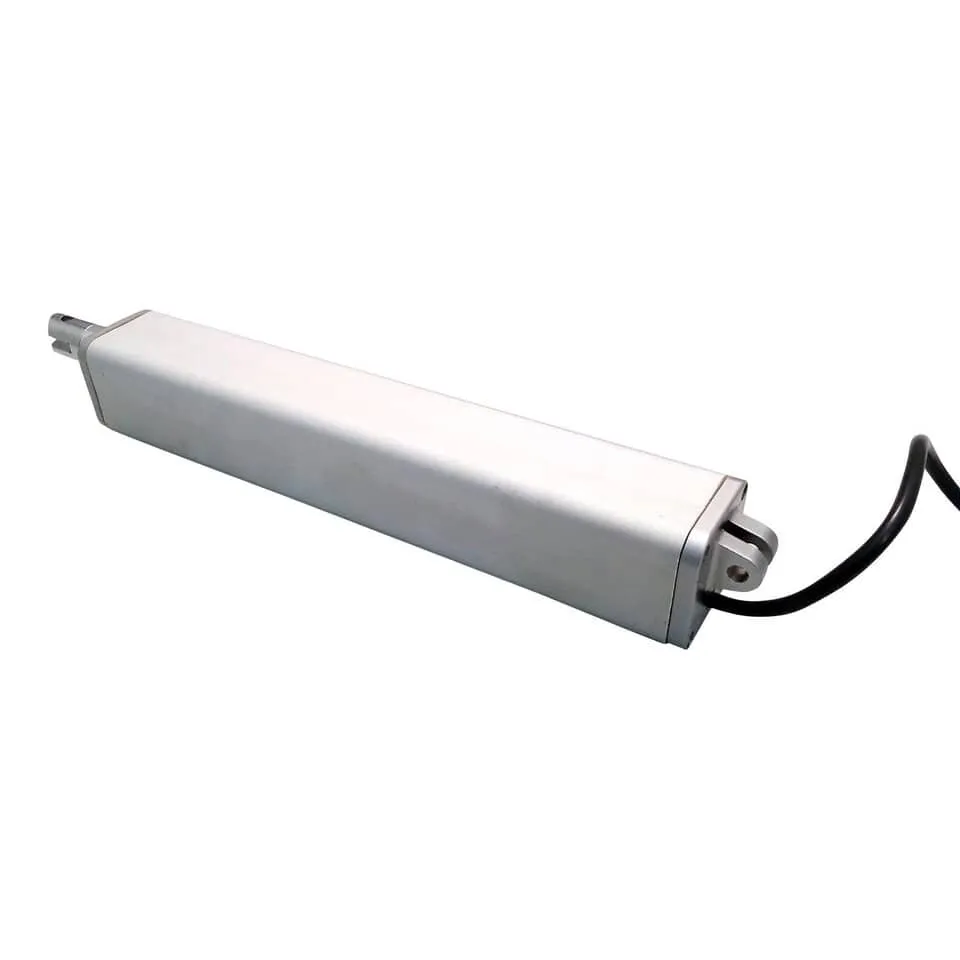

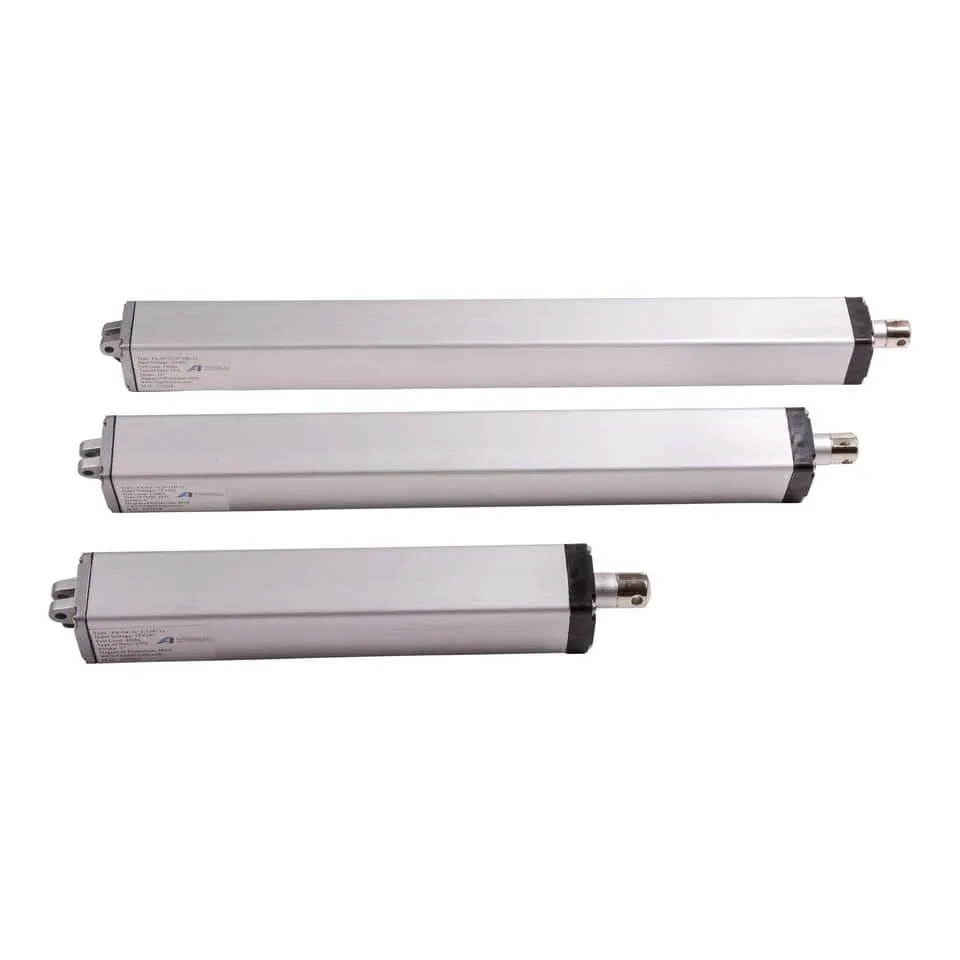

Sleek Rod Tubular Actuators boast a long life span, easy installation, and high-quality 12V DC-powered design, made to last.

Our Sleek Rod Actuator line was produced for applications that require a clean-looking, modern appearance rather than hiding your system. The minimalistic presentation of these units and angular lines make this actuator line-up worthy as a showpiece itself.

CAD models of this actuator can be found under . For further information review the specifications and technical drawings down below or visit our for instructions on how to use this actuator with switches, remotes, speed controllers, and Arduino.

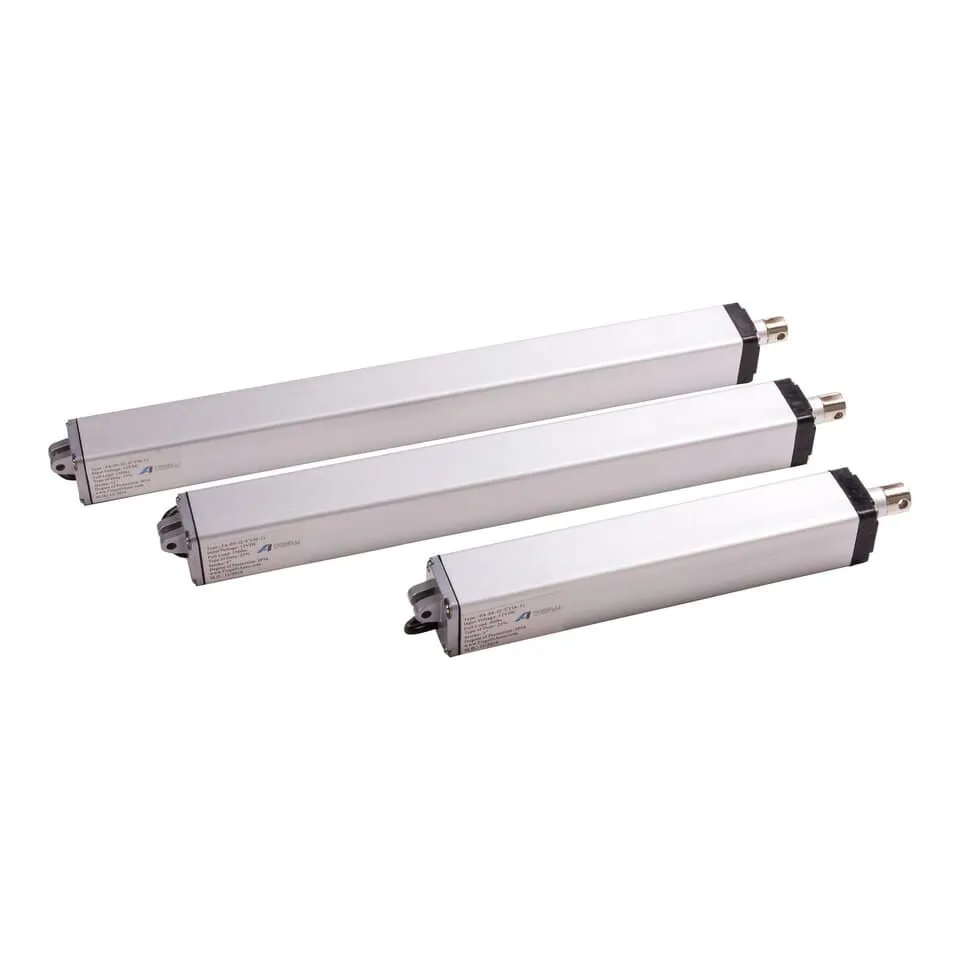

The unit comes in two force variations: 40 lbs. and 150 lbs. Both dynamic force variants are quiet and smooth in operation. For those who want a good-looking, high-quality linear actuator to fulfill their project needs, this is the solution for you. All variants of the Sleek Road Actuator line feature built-in factory limit switches, internal dynamic O-rings for water protection, which provides an IP Rating of 54; as well as clevis mounting points at both ends for versatility. are used with these models.

Specifications

Model	FA-04-12-XX	FA-05-12-XX
Dynamic Force	40 lb.	150 lb.
Static Force	80 lb.	300 lb.
Speed ("/S)	1	0.5
Duty Cycle	20% at 100% load, 50% at 25% of load , absolute max. 5 mins continuous use
IP Rating	54
Draw at Full Load	3 Amps
Input	12v DC
Feedback	None
Operational Noise	~73 dbA @ 1'
Synchronous Capability	None, 5-10% variation in speed
Operational Temperature	-26°C/65°C (-15°F/150°)
Limit Switch	Built-in (factory preset)
Safety Certifications	CE, ROHS

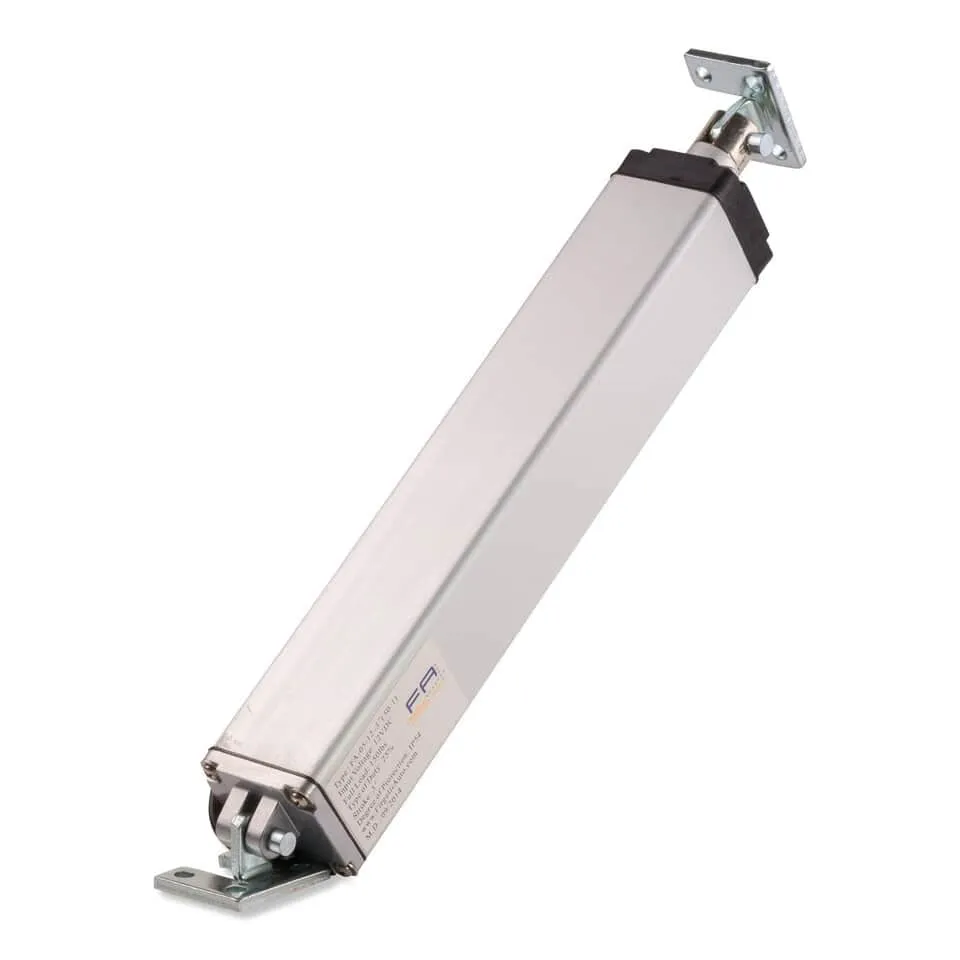

Bracket(s)
Cable Length	1.5 feet
Wire Size	18AWG

Stroke	Retracted Length	Extended Length	Weight (lb.)	STEP File
3"	11.5"	14.5"	2.5
6"	14.5"	20.5"	2.9
9"	17.5"	26.5"	3.25
12"	20.5"	32.5"	3.7
18"	26.5"	44.5"	4.5
24"	32.5"	56.5"	5.3
30"	38.5"	68.5"	6.5
