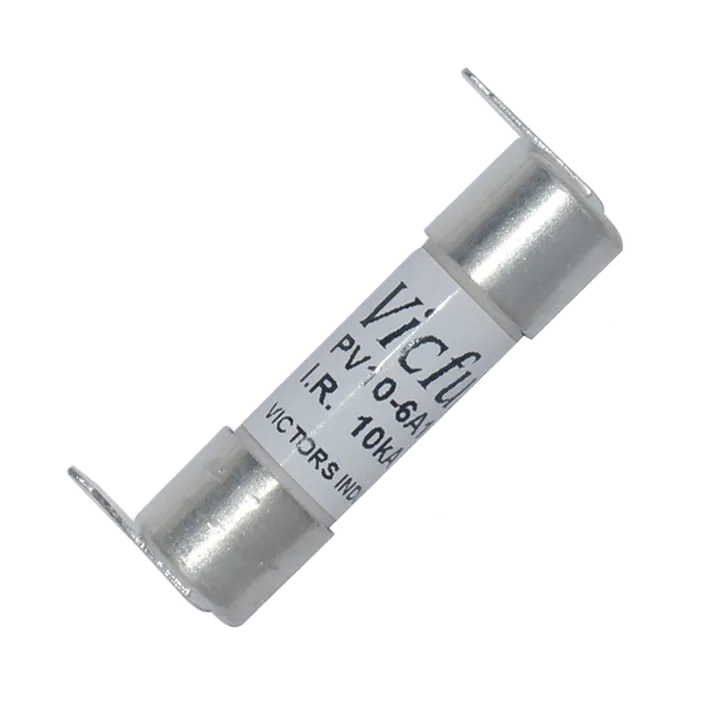

PV10-2A1000VDCP10gPV, AEO 10.3x38 GpV Solar Fuse 2Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539
Features
- Meets the new UL and IEC photovoltaic standards
- UL Recognized for 1000 VDC
- High breaking capacity of 10 kA @ 1000 VDC
- Low min. interrupting rating of 1.35 x In
- Meets the requirements of IEC 61730-2 for PV module safety
Applications
- All photovoltaic applications
- Inverters
- Battery charge controllers
- In-line protection
- String fuses
Specification
| Vicfuse Part Number | PV10-2A1000VDCP10gPV |
| Fuse Type | I²t GpV Class Fast Blow |
| Nominal Voltage | 1000VDC |
| I²t Rating (Pre-Arcing) | 400 A²/s |
| Nominal Current (DC) | 10 Amp |
| Tested Breaking Capacity | 10kA @1000VDC |

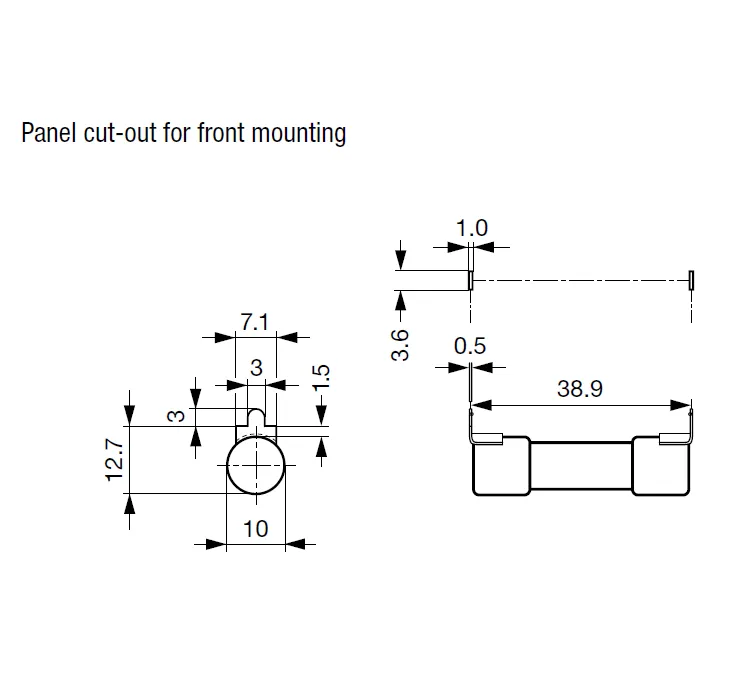

| Dimensions | 10.3 x 38mm |
| Fuse Holder |
, |
| Mounting Style | Requires fuse holder |
| Operating Temperature Range | -40°C / 125°C |
| Watt Loss | 1.8W |
| Standards | UL2579, IEC 60269, GB13539 |
| DC Breaking Capacity | 10kA |
| Unit Weight | 8g |
| Factory Pack Qty | 10 |
Datasheet
Compatible Fuse Holder
