Comes with:
- Processors - 1 x Intel® Xeon® E3-1240v6
- Memory - 16GB (1x16GB UDIMMs, 2400 MHz)
- Network Controller - Broadcom 5720 Dual-port 1GbE
- Storage Controller - HPE Dynamic Smart Array B140i with 4 SATA ports support
- Hard Drive - None ship standard; includes 7SFF hard drive blanks
- Internal Storage - 8SFF HDD Bays (Hot Plug)
- Optical Drive Bay - 1 (Optional: DVD-ROM, DVD-RW)
- Optical Drive - None
- PCIe Slots - 4 PCIe 3.0 slots
- Power Supply - (1) 460W Redundant Power Supply
- Fans - 1 non hot plug, non-redundant
- Management - iLO Management (standard), Intelligent Provisioning (standard), iLO Essentials (optional), iLO Scale-out (optional only for DL), iLO Advanced (optional)
- Energy Start - N/A
- Form Factor - Tower (4U)
The refurbished HPE ProLiant ML30 Gen9 server is an affordable single-socket tower server that features value performance, expansion, and growth that is ideal for small businesses and remote branch offices.

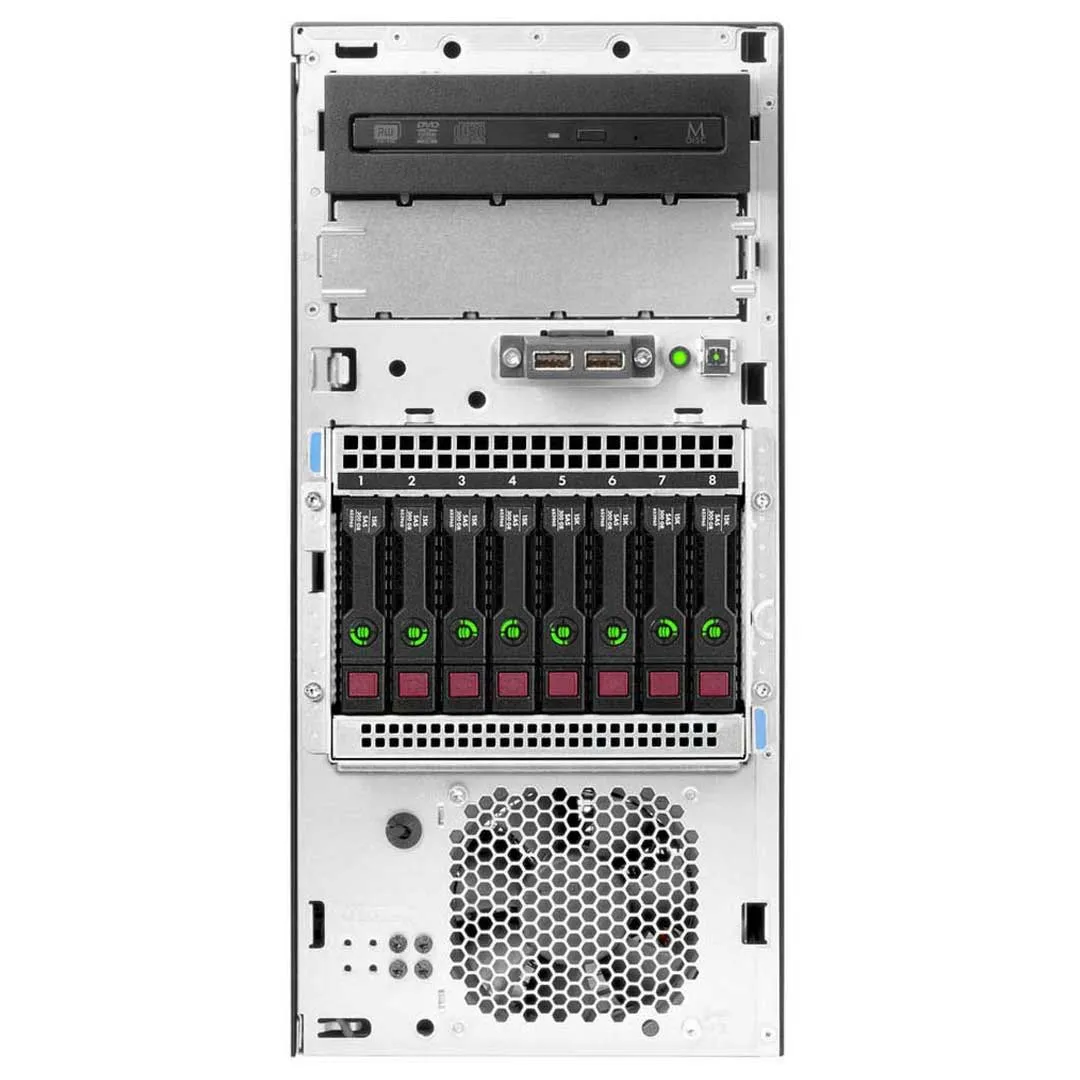

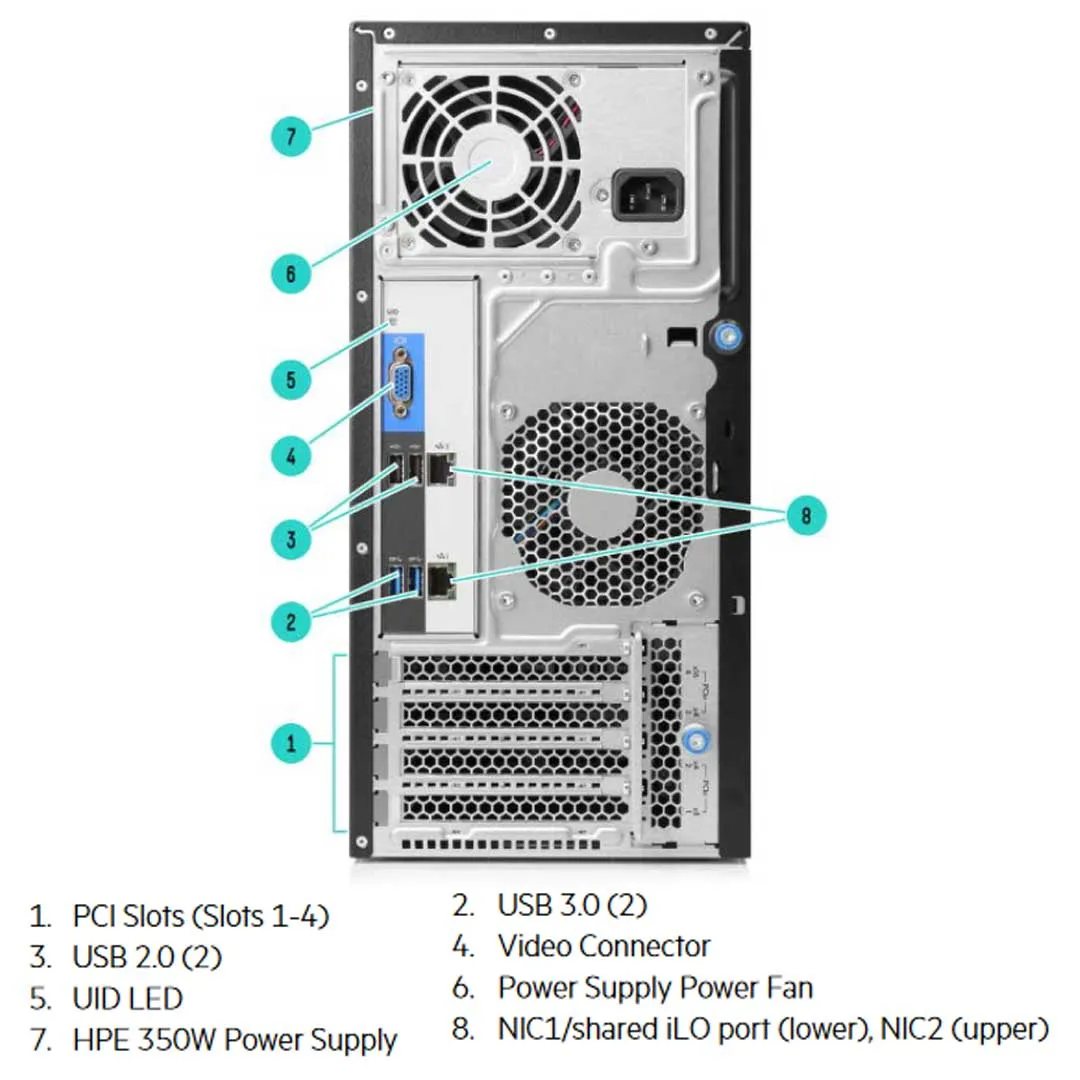

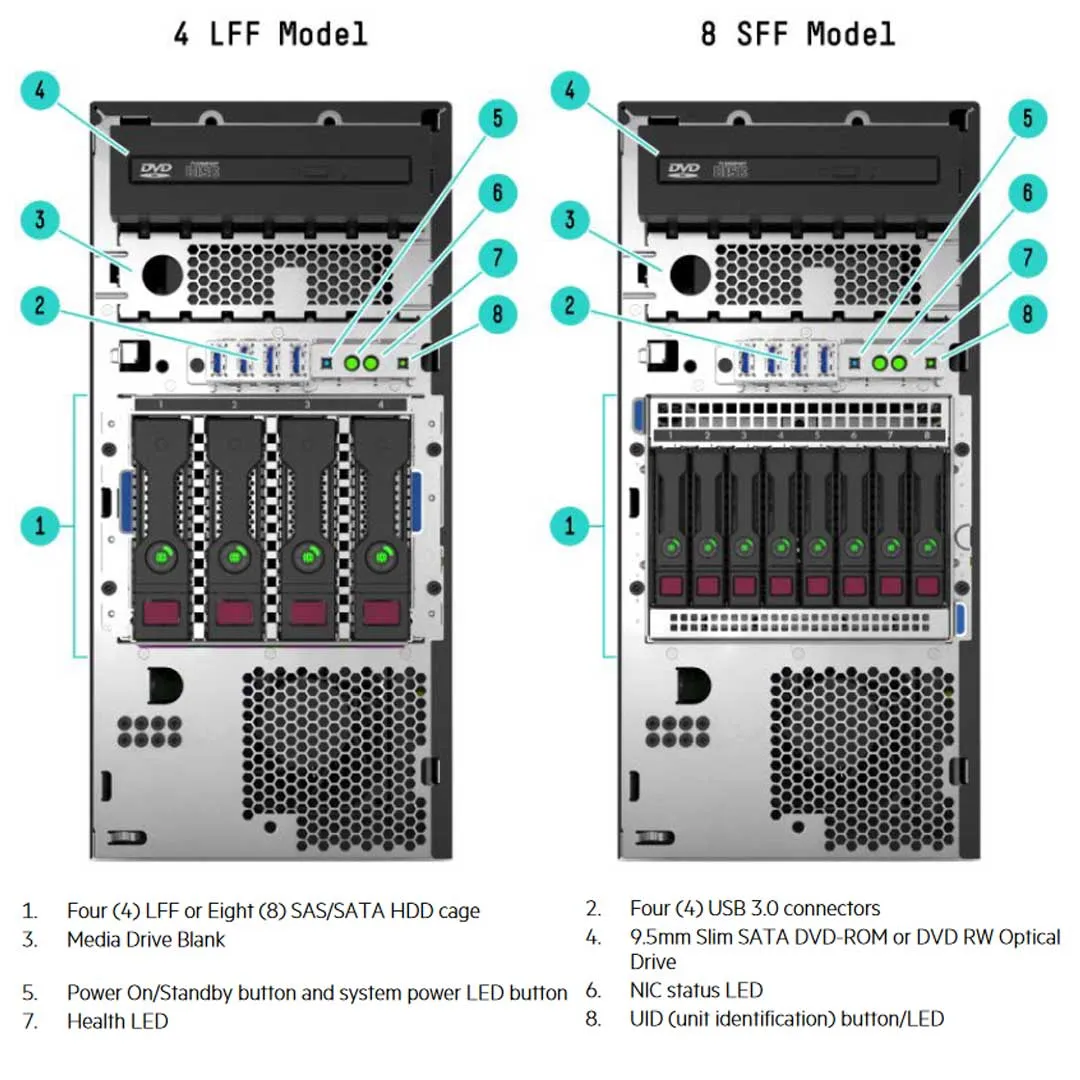

The ML30 Gen 9 HPE Tower Server has a few Drive Options in this 1 Socket configurations. Depending on the Storage controller installed, you can have either 4 SATA/SAS LFF Drives or 8 SATA/SAS HDD/SSD SFF Drives. This Server has 4 PCIe slot in the back of the tower. Please take note as to what card you're installing into what spot. Slot 4 is a x16PCI-e while slot 3/2 are x4PCI-e and slot 1 is a x8PCI-e. All of this is powered by either a Non-Hot Swap 350W (E-star 1.0/2.0) PSU or a redundant configuration with 1 or 2 Hot Swap 460W PSU CS Gold with hot swap PSU backplane. When the Redundant PSU backplane is installed 1 media tray slots can't be installed.

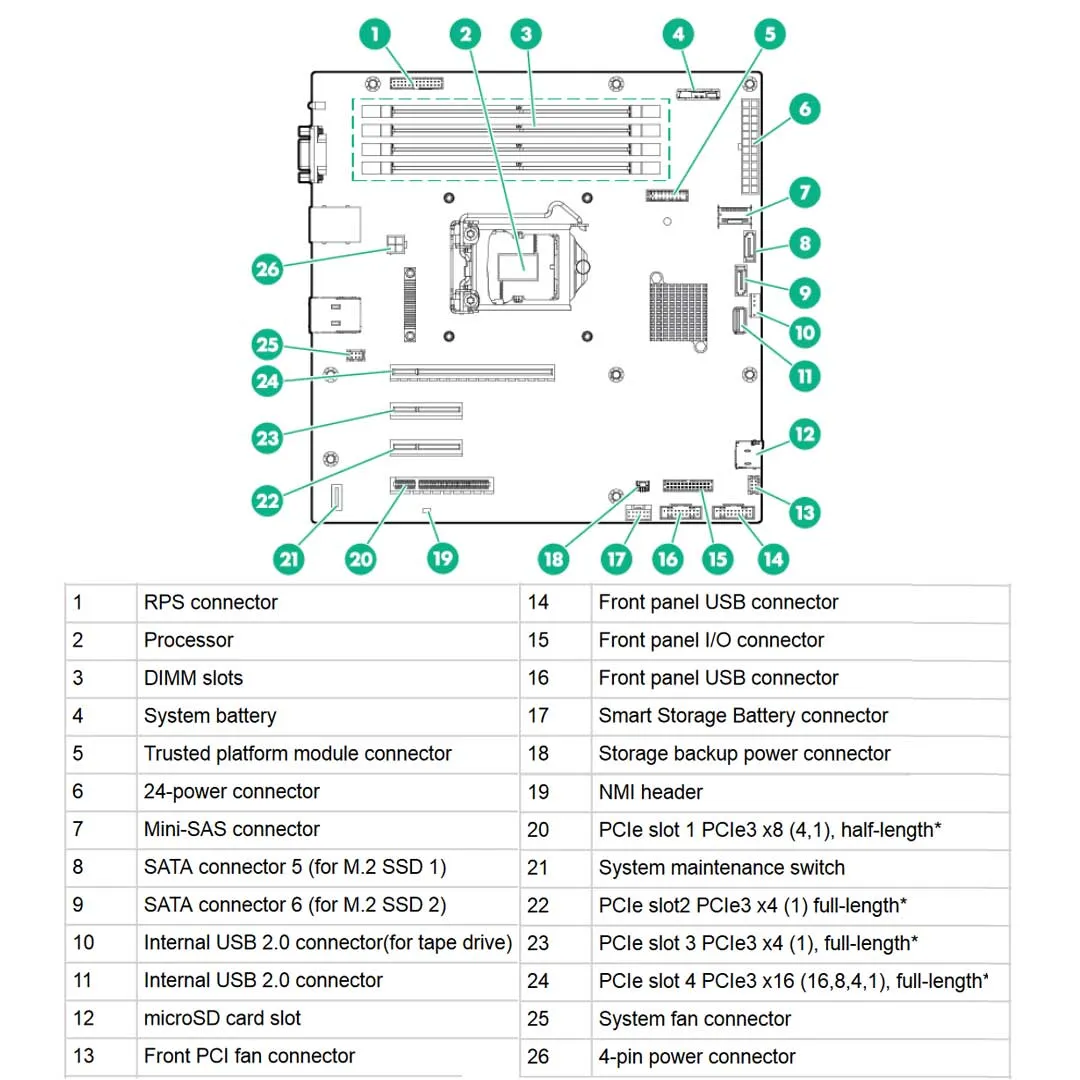

This Chassi comes with System board (873607-001)
- 4 Non Hot-Plug Drive Cage - 811591-001
- 4 Hot-Plug Drives Cage / Backplane - 825099-001 / 792351-001
- 8 Hot-Plug Drives Cage / Backplane - 686753-002 / 792352-001
- Non Hot Plug LFF SATA | 4 x 4TB = 16TB
- Hot Plug LFF SAS | 4 x 12TB = 48TB
- Hot Plug LFF SATA | 4 x 12TB = 48TB
- Hot Plug LFF SATA SSD | 4 x 1.92GB = 7.68TB
- Hot Plug SFF SAS | 8 x 2.4TB = 19.2TB
- Hot Plug SFF SATA | 8 x 2TB = 16TB
- Hot Plug SFF SATA SSD | 8 x 3.84TB = 30.72TB
NOTE: Max=1 if selected with another x8 device.
- (Standard) HPE Dynamic Smart Array B140i with 4 SATA ports support
- H240 host bus adapter (HBA) PCI-e 3.0x8 2 Internal ports 12Gb SAS 6Gb SATA - 779134-001
- H241 host bus adapter (HBA) PCI-e 3.0x8 2 Internal ports 12Gb SAS 6Gb SATA- 750054-001
- Smart Array P440 4GB FBWC Internal PCI-e 3.0x8 12Gb SAS 6Gb SATA controller - 749797-001
- Smart Array P441 4GB FBWC External 2 mini-SAS ports PCI-e 3.0x8 12Gb SAS 6Gb SATA controller - 749798-001
- Smart Storage Battery for FBWC support - 871264-001
- Smart Storage Battery holder - 825640-001
NOTE: Max=1 if selected with another x8 device.
- 1 Gigabit Ethernet adapters
- HPE Ethernet 1Gb 4-port 331T Adapter - 647594-B21 -
- HPE Ethernet 1Gb 4-port 366T Adapter - 811546-B21 -
- HPE Ethernet 1Gb 2-port 332T Adapter BCM5720 - 615732-B21 -
- HPE Ethernet 1Gb 2-port 361T Adapter - 652497-B21 -
- 10 Gigabit Ethernet adapters
- HPE Ethernet 10Gb 2-port 530SFP Adapter - 652503-B21 -
- HPE Ethernet 10Gb 2-port 530T Adapter - 656596-B21 -
- HPE Ethernet 10Gb 2-port 560SFP Adapter - 665249-B21 -
- HPE Ethernet 10Gb 2-port 561T Adapter - 716591-B21 -
- (Standard) HPE 350W ATX-Gen9 Power Supply FIO Kit
- 350W E1.0 - 821243-001
- 350W E2.0 - 821244-001
- HPE 460W Redundant Power Supply and parts:
- Redundant 460W CS Gold hot-plug power supply - 511777-001
- Redundant power supply cage - 686665-001
- Redundant power supply backplane - 686744-001
The HPE Tower server ML30 is a high-performance server that comes equipped with one CPU and four DIMMs, providing ample processing power and memory to handle a range of workloads. This server also features support for two form factor drives, allowing you to choose between either four LFF HDDs or eight SFF SSD/HDDs. This flexibility makes it easy to customize the server to meet your specific storage needs. Additionally, the HPE Tower server ML30 features a compact tower design, making it easy to deploy and manage in a variety of environments. Whether you're running a small business or a larger enterprise, the HPE Tower server ML30 is a versatile and reliable choice for all of your computing needs.
