Here's a Breakdown of the Components You Mentioned:
32-Bit Microcontroller: The Pixhawk PX4 features a 32-bit microcontroller that handles flight control algorithms and processes sensor data for stabilization and navigation.GPS Module: This is likely a GPS unit included with the Pixhawk PX4, providing accurate positioning information for the drone. GPS is crucial for functions like waypoint navigation, return-to-home, and position hold.
Shock Absorber: A shock absorber is used to reduce vibrations that can affect the performance of the sensors on the flight controller. It helps to ensure stable and accurate sensor readings.
Encoder: Encoders are devices that convert rotary motion into electrical signals. They might be used in various components of the drone, such as motors or other moving parts, to provide feedback and aid in control.
Power Module: The power module is responsible for managing the power supply to the flight controller and other connected devices. It often includes a current sensor to monitor power consumption.
Buzzer: The buzzer is a simple audio device that can be programmed to emit different sounds. It is commonly used for providing audible alerts or notifications to the user.
Pixhawk V2.4.8 Flight Board
- The advanced 32-bit ARM CortexM4 high-performance processors can run NuttX RTOS real-time operating system.
- 14 PWM / servo output.
- Bus interface (UART, I2C, SPI, CAN).
- The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe.
- Provide automatic and manual modes.
- Provide redundant power input and failover.
- Multicolor LED lights.
- Provide multi-tone buzzer Interface.
- Micro SD recording flight data.
Processor
- 32bit STM32F427 Cortex M4 core with FPU.
- 168 MHz.
- 128 KB RAM.
- 2 MB Flash.
- 32-bit STM32F103 failsafe co-processor.
Sensors
- ST Micro L3GD20H 16 bit gyroscope.
- ST Micro X4HBA 303H 14 bit accelerometer/magnetometer.
- Invensense MPU 6000 3-axis accelerometer/gyroscope
- MEAS MS5607 barometer
Interfaces:
- 5x UART (serial ports), one high-power capable, 2x with HW flow control.
- 2x CAN (one with an internal 3.3V transceiver, one on expansion connector)
- Spektrum DSM / DSM2 / DSM-X® Satellite compatible input
- Futaba S.BUS® compatible input and output.
- PPM sum signal input.
- RSSI (PWM or voltage) input.
- I2C
- SPI
- 3.3 and 6.6V ADC inputs.
- Internal micro USB port and external micro USB port extension.

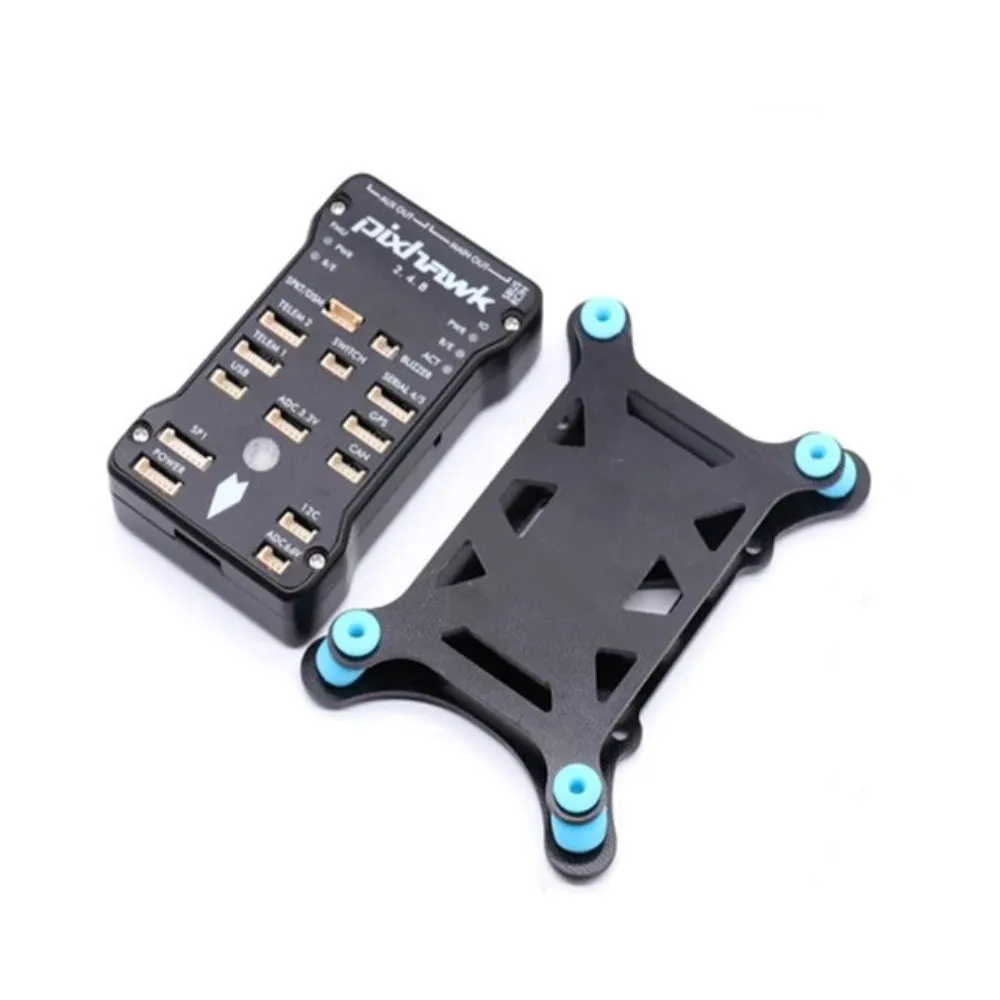

Glass Fiber Flight Controller Anti-vibration/Shock absorber Set
- Color: Black
- Material: Glass fiber
- Suit for the different open source flight controllers, like APM 2.5/2.6/2.8, KK, MWC, and Pixhawk 2.4
NEO-M8N GPS Module
- Receiver type 72-channel Ublox M8 engine.
- GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1.
- SBAS L1 C/A: WAAS, EGNOS, MSAS.
- Galileo-ready E1B/C (NEO-M8N).
- Nav. update rate1 Single GNSS: up to 18 HZ.
- Concurrent GNSS: up to 10 Hz.
- Position accuracy2 2.0 m CEP.
- Acquisition2 Cold start: 26 s.
- Aided starts: 2 s.
- Reacquisition: 1.5 s.
- Sensitivity2 Tracking Nav: –167 dBm.
- Cold start: –148 dBm.
- Hot starts: –156 dBm.
- Assistance AssistNow GNSS Online.
- Assist Now GNSS Offline (up to 35 days)3.
- Assist Now Autonomous (up to 6 days).
- OMA SUPL & 3GPP compliant
- Oscillator TCXO (NEO-M8N/Q).
- Crystal (NEO-M8M).
- RTC crystal Built-In.
- Noise figure On-chip LNA (NEO-M8M). Extra LNA for.
- lowest noise figure (NEO-M8N/Q).
- Anti-jamming Active CW detection and removal.
- Extra onboard SAW bandpass filter (NEO-M8N/Q).
- Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N).
- Supported antennas Active and passive.
- Odometer Travelled distance.
- Data-logger For position, velocity, and time (NEO-M8N).
GPS Folding Base Antenna Set
- Material: CNC Aluminum alloy, carbon glass fiber rod
- Mounting rod diameter: 4mm
- length of rod: 14 cm.
- GPS plate diameter: 40 mm.
- Base plate diameter: 35 mm
- Mounting hole spacing: 16-35mm
- Weight: 20g
- Colour: Anodised black
- Note: Adhesive Pad is not included.
APM 2.5.2/2.6/2.8 Pixhawk Power Module
- Max input voltage: 28V
- Max current sensing: 90A
- Voltage and current measurement configured for 5V ADC
- Switching regulator outputs 5.3V and 3A max
- 6-pos DF13 cable plugs directly to APM 2.5’s ‘PM’ connector
- Support 6S battery
Physical Attributes
- Weight (gm): 161

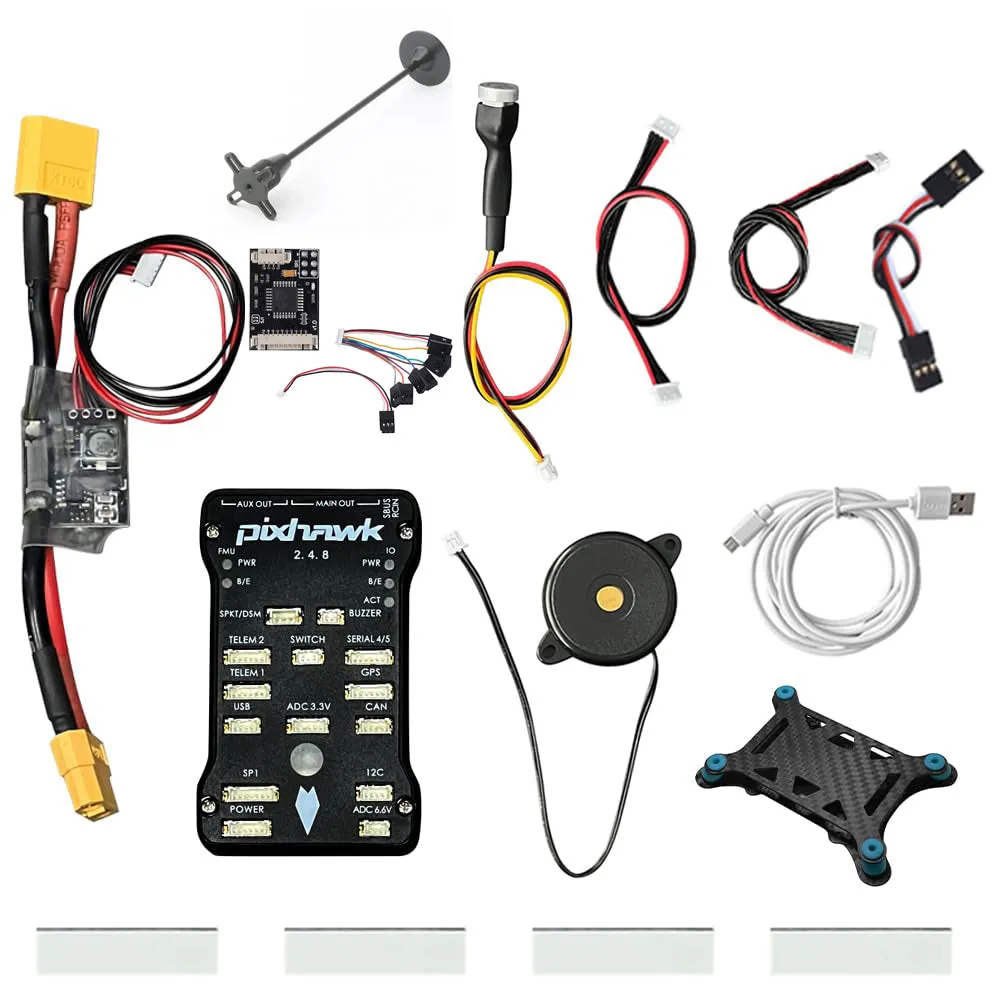

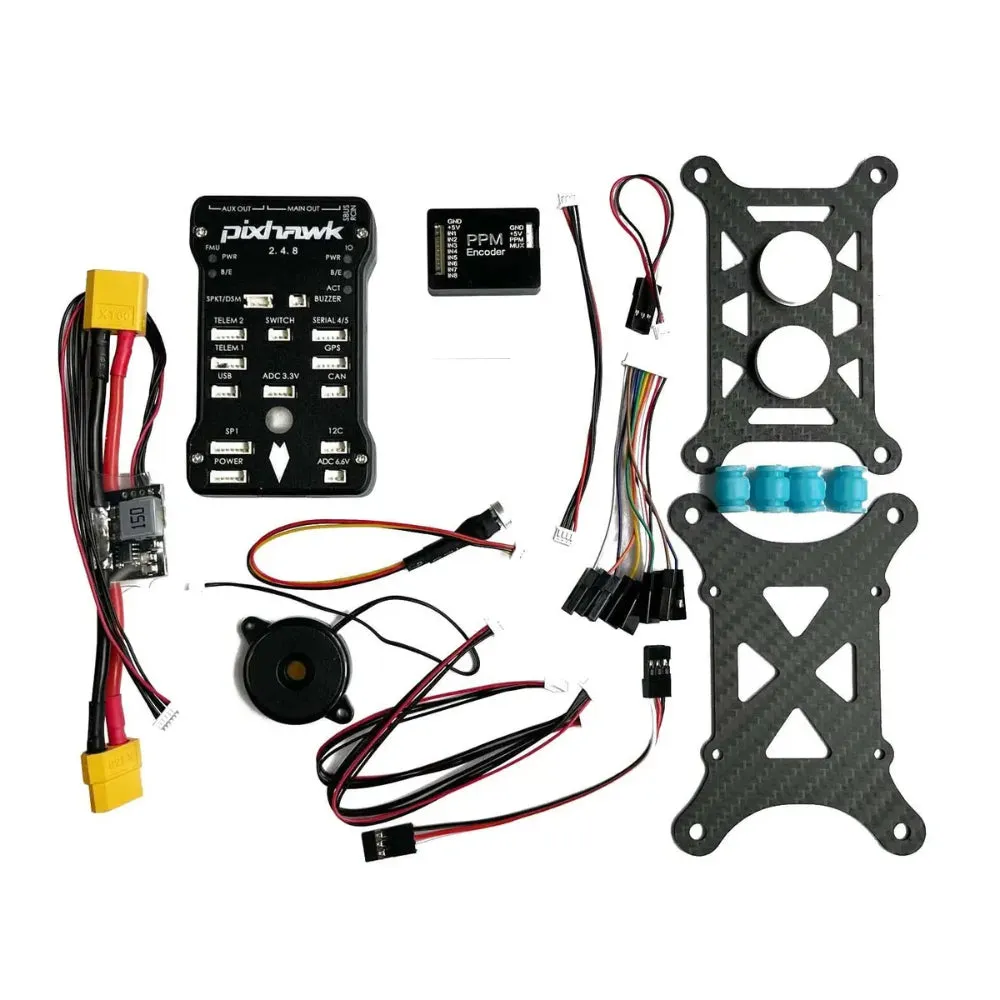

Package Includes
- 1 x Pixhawk 2.4.8 32 Bit Autopilot PX4 Drone Flight Controller.
- 1x Glass Fiber Flight Controller Anti-vibration/Shock absorber Set.
- 1 x Buzzer Module.
- 1 x Micro USB-A to Micro-B Cable -100cm
- 1x GPS Folding Base Antenna set.
- 1 x PPM Encoder V1.0 with wire
- 1 x Power Module v1.0
