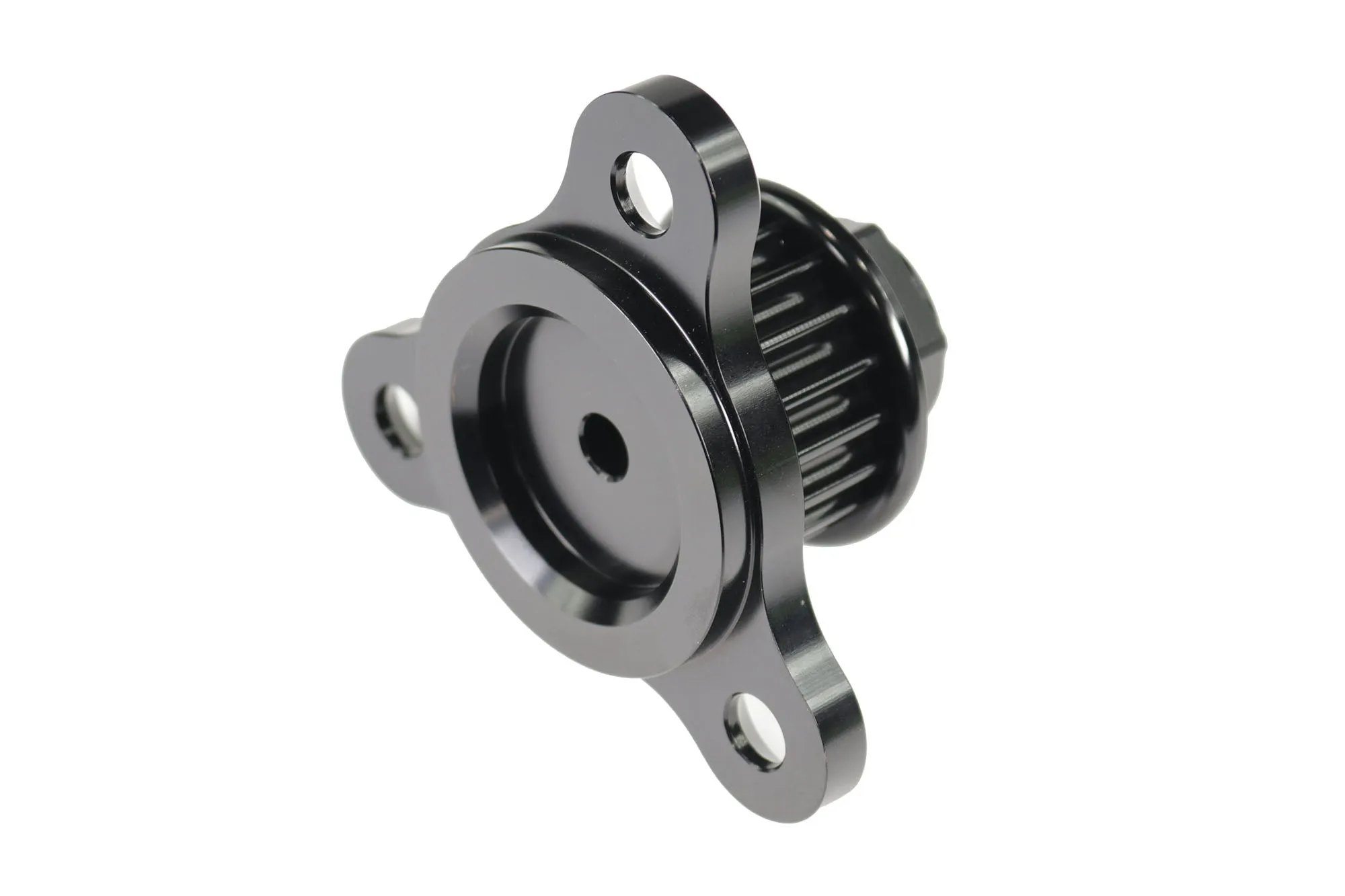

Motion Raceworks / Fluidworks 18 Tooth HTD Mandrel Coyote / F-Body LS ATI Balancer 27-130
Designed specifically for these balancers (please measure your inner bore before ordering to confirm a 2.27 inches):
F-Body / GTO LS Balancer
- 918852
Coyote / Ford
- 918047
- 918047N
- 918052
- 918053
- 918048
- 918048N
- 918036
*May work with other balancers that have not yet been confirmed.*
This should fit any ATI balancer with an internal bore of 2.27 inches.
Featuring an 18 tooth HTD pulley, this allows for use with a small and easy to package accompanying accessory pulley.

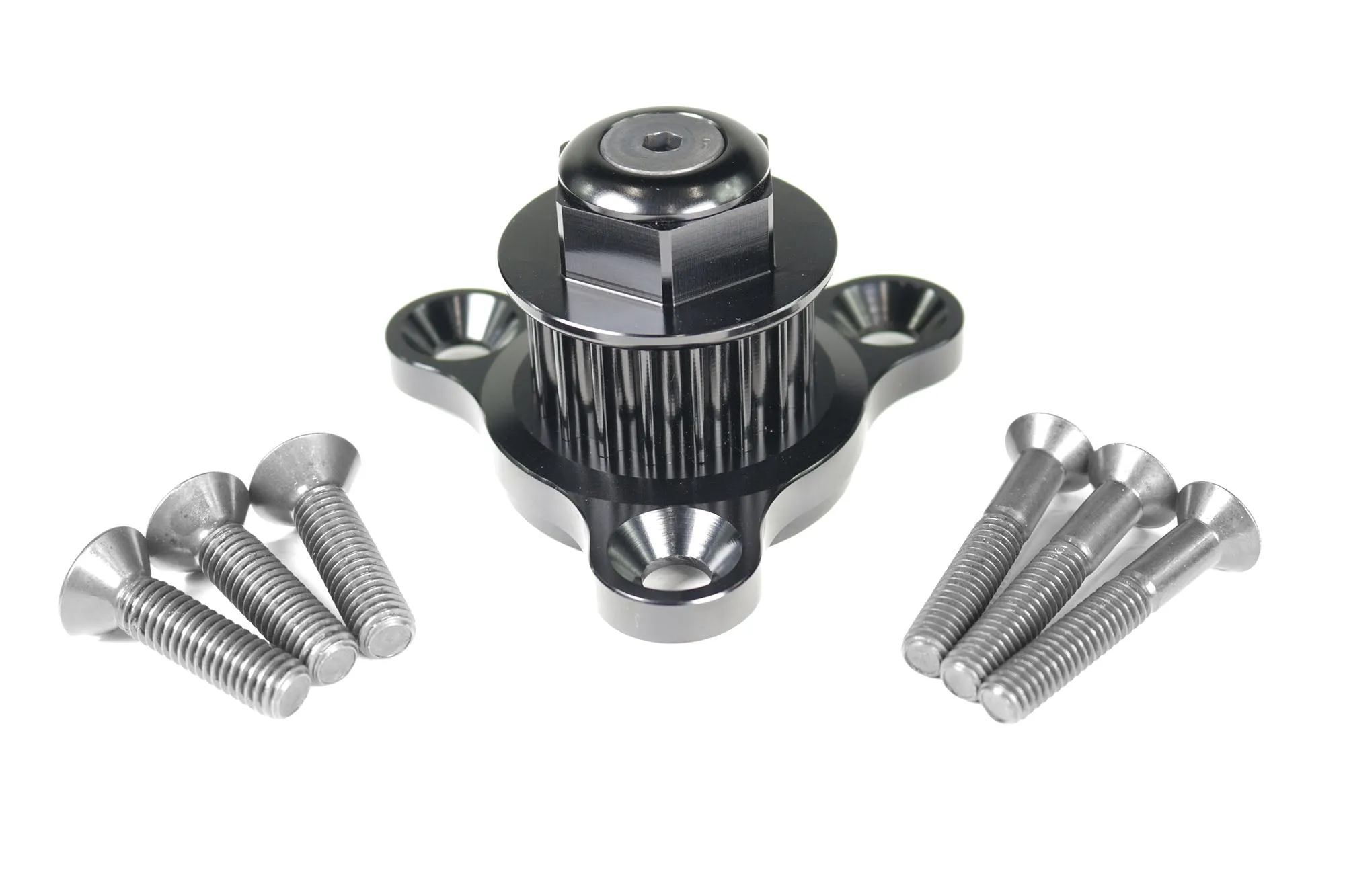

Included in this part number are two complete sets of hardware to bolt to the ATI balancer. One (longer) set is for use with AC pulley in the rear. The (shorter) set is used with no rear AC pulley. This allows for even more versatility in your accessory drives.
Features:
- 18 tooth HTD mandrel (20mm deep)
- Black Anodized for Beautiful Finish
- Two complete hardware sets for use with or without AC rear pulley

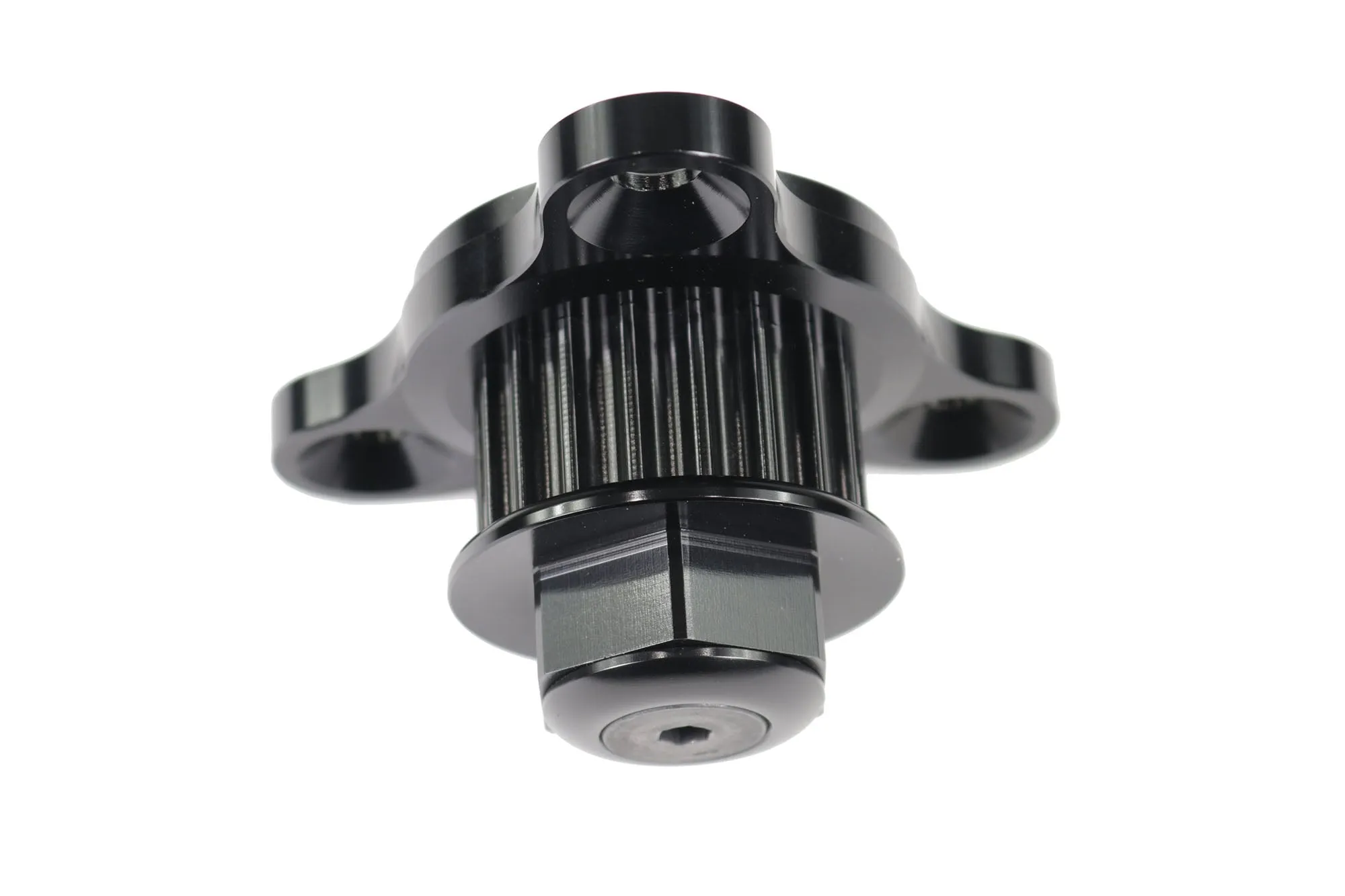

- 1 1/4 front hex drive for rotating engine while installed
Learn how to properly size / select a pulley combination for your mechanical fuel pump / mechanical oil pump in the video below:
