RDM8 DMX Splitters

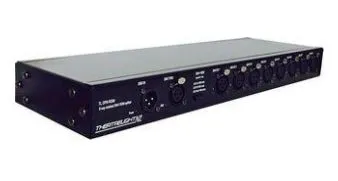

The RDM8 is a transparent in-line RDM splitter used for connecting a large number of RDM devices such as moving lights, LED Luminaires, smoke machines, dimmers etc to an RDM control panel. It may also be used as a DMX splitter in a DMX only system, or as a filter in an RDM system to prevent RDM commands affecting legacy DMX devices.
It provides bi-directional transfer of data according to the RDM ENSA standard between its floating input (RDM “response” port) and its 8 isolated outputs (RDM “command” ports). The RDM8 is compatible with protocols ANSI E1.11 (DMX) and ANSI E1.20 (RDM).
- Floating input with through connector
- LED indicator for RDM/DMX signal input
- 8 outputs, each isolated to 500VDC from Earth, from each other, and from the input
- LED indicator for RDM/DMX signals on each output, active both transmitting and receiving
- Power good LED indicator
- All outputs use 5 volt RS485 drivers for maximum signal drive and integrity
| TLSP-4DMX-RDM | 4 way DMX Splitter, standalone, 5 pin XLRs |
| TLSP-8RDM | 8 way RDM/DMX Splitter, rack/wall/bar mount, 5 pin Neutrik XLRs |
| TLSP-8RDM-P | 8 way RDM/DMX Splitter, rack/wall/bar mount, 3 pin fast wiring terminals (indent only) |
| TLSP-8RDM-3X | 8 way RDM/DMX Splitter, rack/wall/bar mount, 3 pin Neutrik XLRs (indent only) |
| TLSP-8RDM-RJ45 | 8 way RDM/DMX Splitter, rack/wall/bar mount, RJ45 isolated outputs (indent only) |
