Showtec Booster Pro

Showtec Booster Pro

$ 42.06

$ 54.68

Save: $

Title:
  • DefaultTitle
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

2-8 DMX / RDM Booster, 5-pin XLR

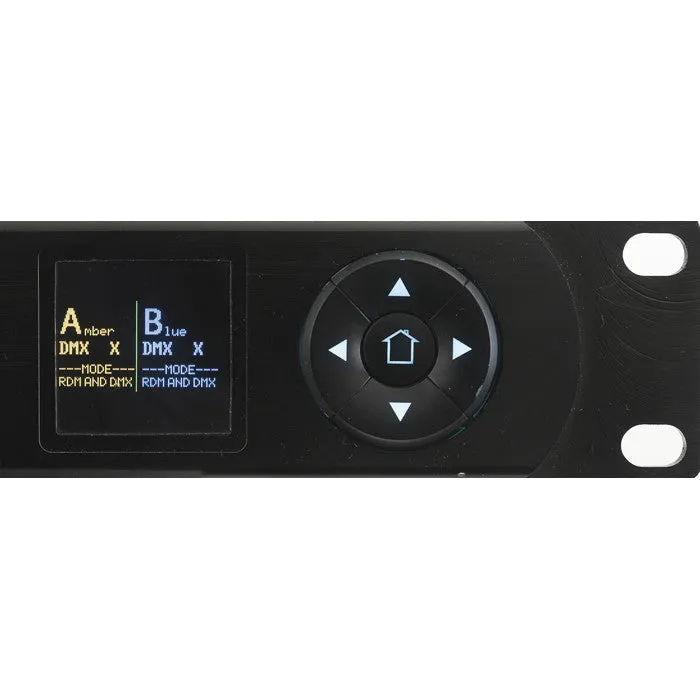

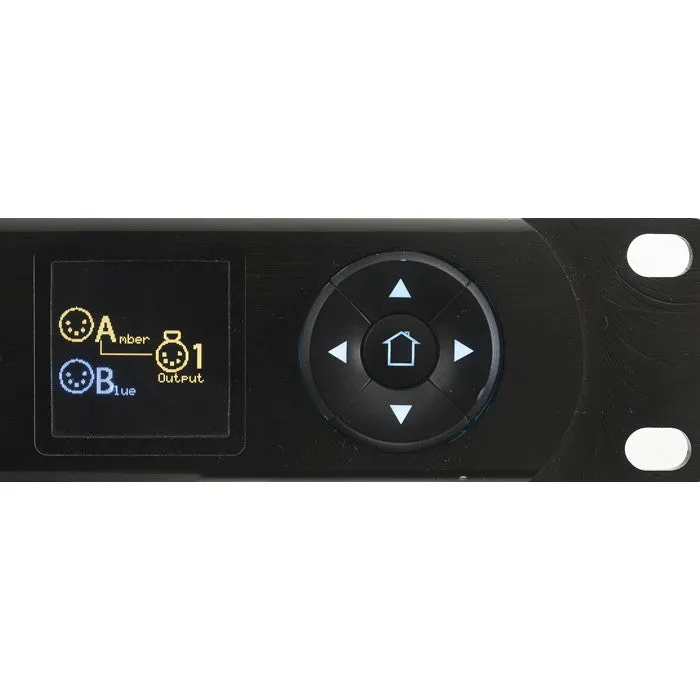

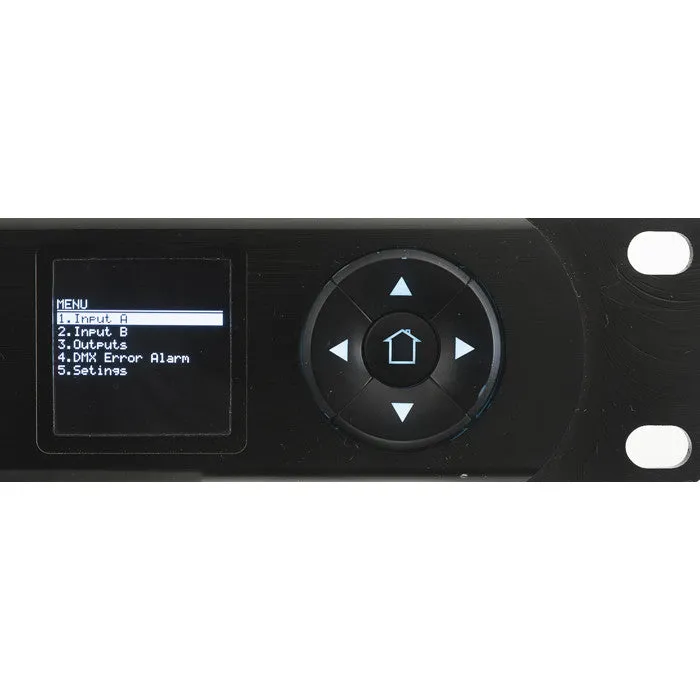

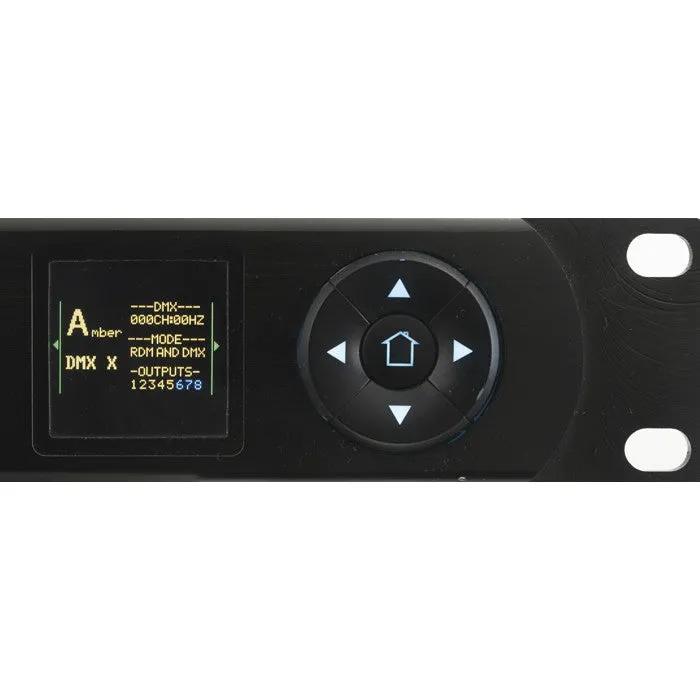

  • OLED Display
  • Isolated outputs
  • 2 inputs, selectable outputs
  • Multiple monitoring functions

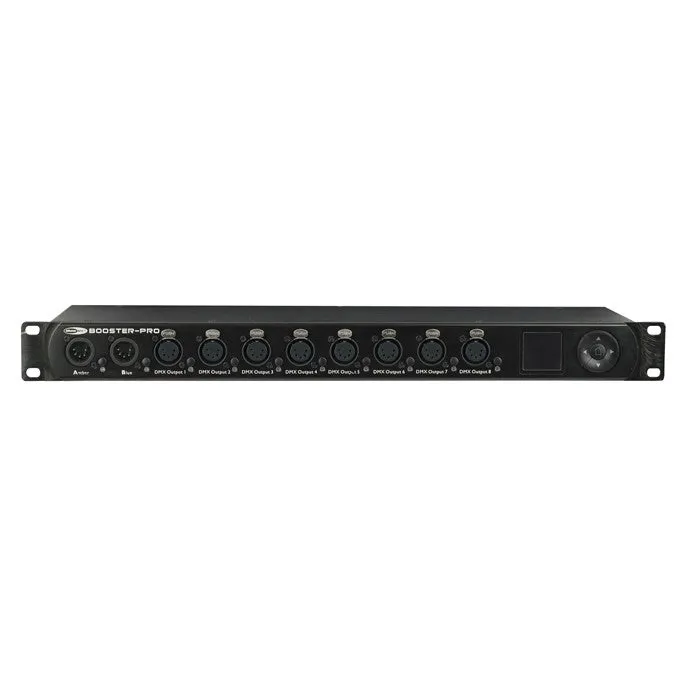

The Booster Pro is the ultimate DMX tool which should be in the equipment rack of each rental company or installation. The Booster Pro is an optical isolated DMX Splitter and Booster. The Booster Pro has 2 inputs which can be patched to 8 selectable output (for each output you can patch input A or B). The Booster Pro is fully RDM compatible and offers real-time DMX monitoring. For specialist applications the DMX timing can be adjusted. Furthermore each output of the Booster Pro has a monitoring function which controls the status of the connected cables real-time. In case of any failure an acoustical signal will warn the user. The intuitive OLED display lets you set all the different function fast and easily.

Specifications

Electrical Specifications and Connections
Power Supply  100-240 VAC 50-60 Hz
Power Consumption 5 W

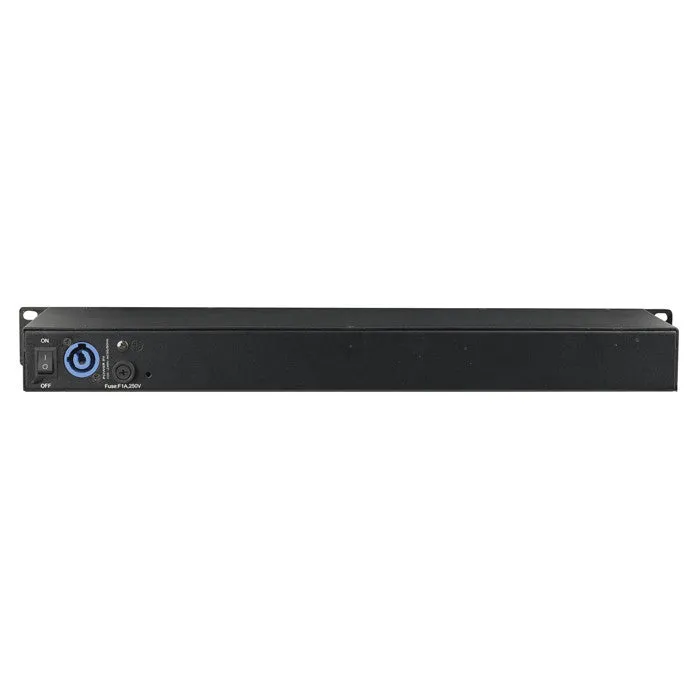

Power Connector in Power Pro Blue
DMX Connector XLR 5P In/Out
DMX Connector in XLR 5P
DMX Connector out XLR 5P

Mechanical Specifications
 Length (mm) 483 mm
Width (mm) 137 mm
Height (mm) 46 mm
Installation Depth (excl. connector) 137 mm
Weight 2 kg
Rack Units 1 U
IP Rating IP20 (indoor use only)
Housing Metal, Plastic
Colour Black

Product Properties
LED Indicators  Operation mode, Power, Signal

Thermal Specifications
Maximum Ambient Temperature  55 °C
Minimum Operating Temperature -10 °C

Included Items
Included Cables  Power Pro Cable

Control and Programming
Control Mode  DMX
Protocols DMX, RDM, USITT
Display OLED
Universes 2

Product code 50789

EAN 8717748422774
