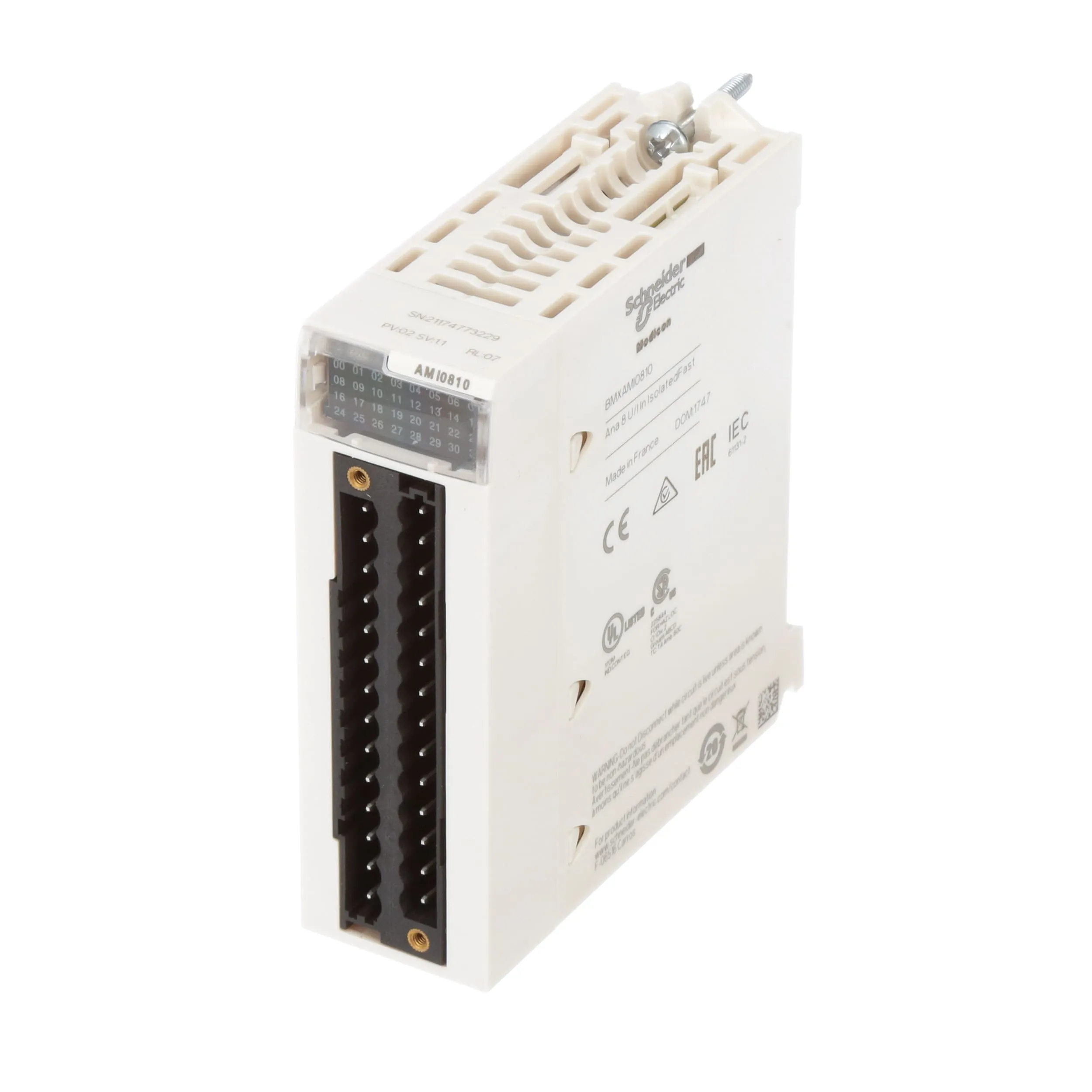

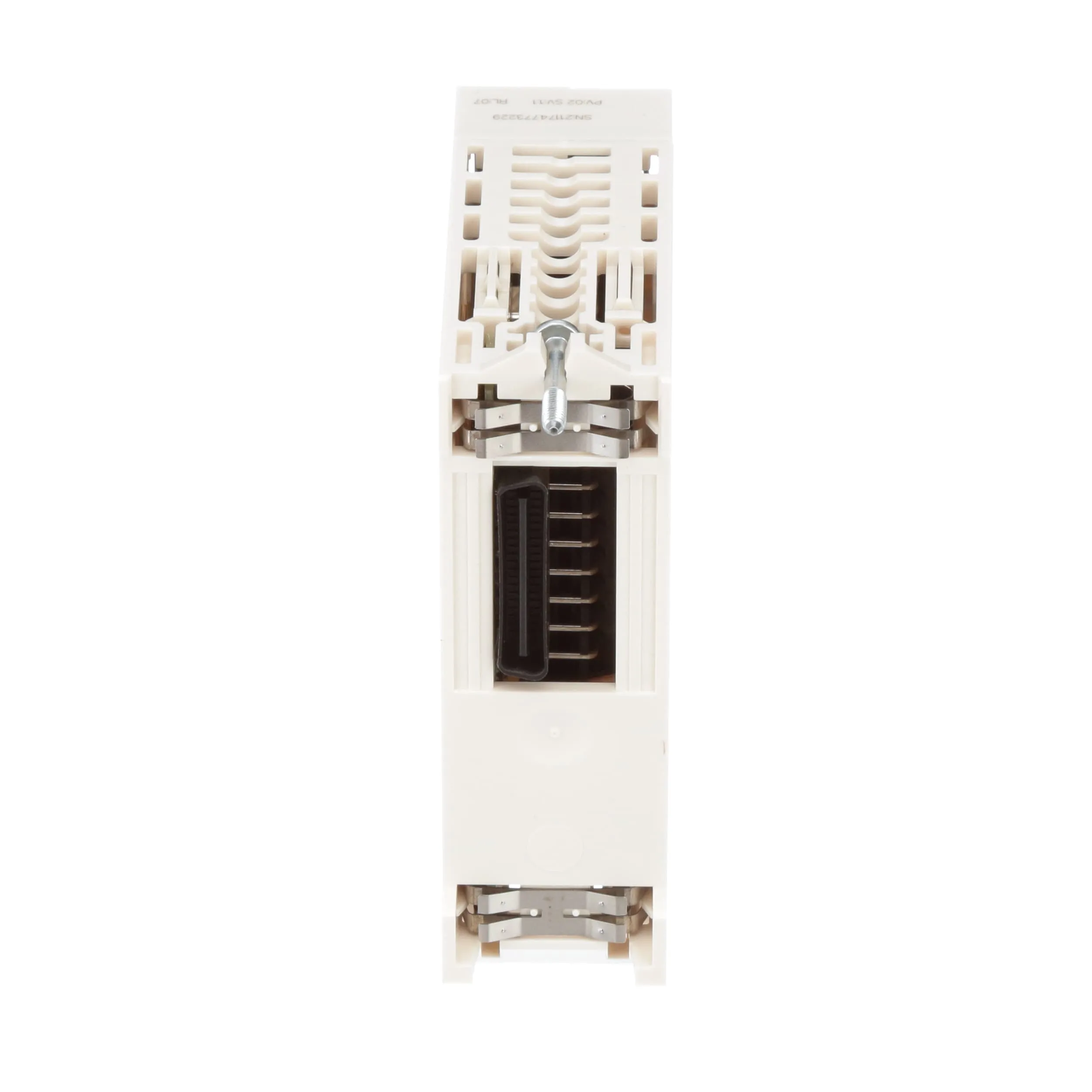

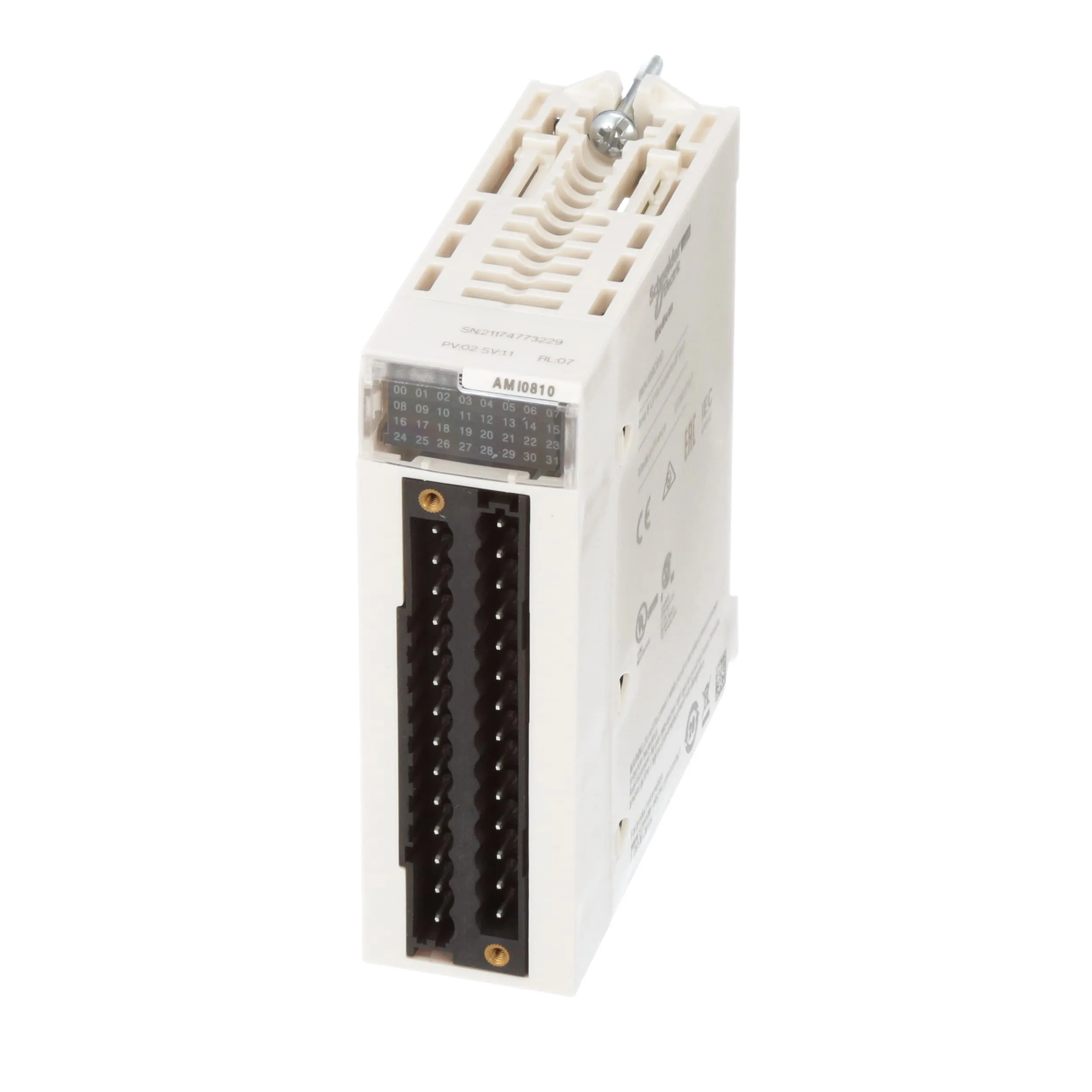

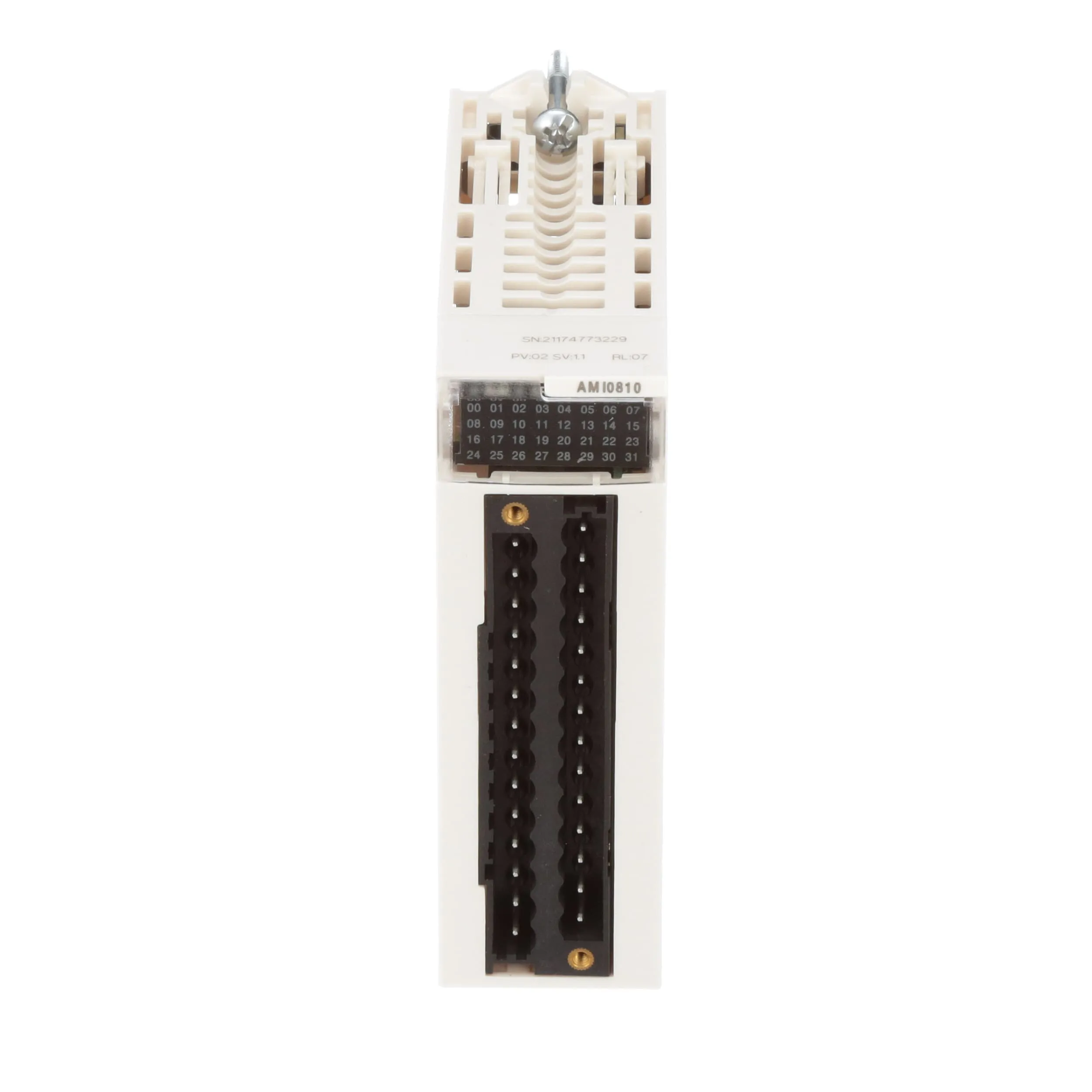

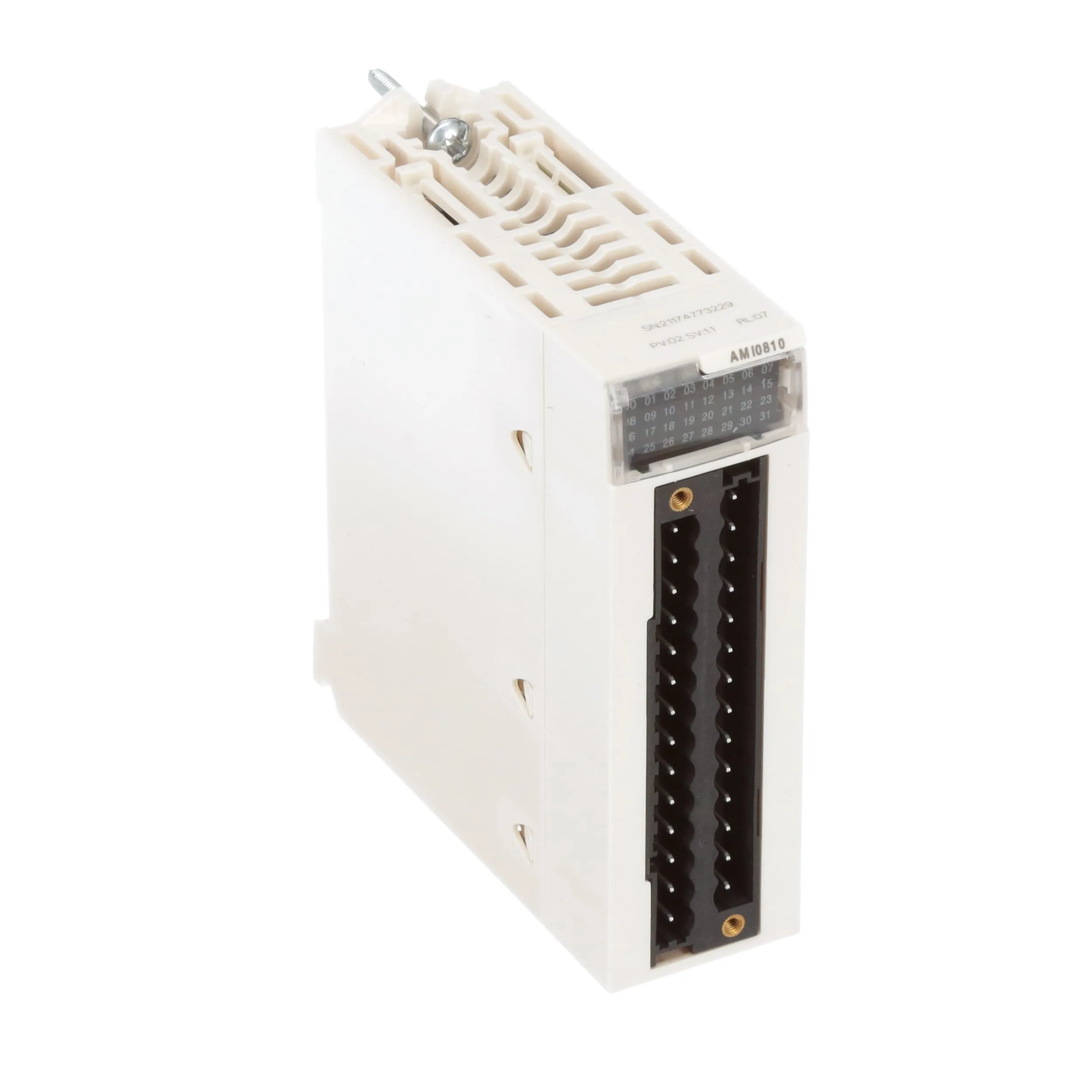

Schneider Electric BMXAMI0810

Schneider Electric BMXAMI0810

$ 57.78

$ 75.11

Save: $ 17.33

Title:
  • DefaultTitle
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Product Attribute Attribute Value
Current, Supply 0 to 20, 4 to 20 mA
Depth 0.118" (3mm)
Dimensions 242.4 x 100 x 150 mm
Family Name Modicon Controllers Family
For Use With Modicon X80 I/Os
Input Current 0 to 20, 4 to 20 mA
Input Type Analog
IP Rating IP20
Length 9.543" (242.4mm)
Maximum Operating Temperature 60 °C
Minimum Operating Temperature 0 °C
Mounting Type DIN Rail Mount
Number of Inputs 8 Input
Output Type Analog
Primary Type Module
Series
Special Features Modicon Programmable Automation Controller
Supply Voltage -10 to 10 V
Temperature Operating Range 0 to 60 °C
Type I/O
UPC Code 785901676003
Width 3.937" (100mm)

Overview

Schneider Electric Modicon M340™ PAC - "All-in-one CPU" | Automation Platform:

Our latest midrange PAC is the most integrated ever! Highly requested by industrial OEMs and end users, the all-power-inside concept boasts high-performance processing and small size to create a system that provides flexibility beyond any before. With up to three built-in CPU communication ports, large memory options, sixty-four channel high-density modules, and embedded web servers, the Modicon M340 is a powerful solution for industrial OEMs and end users demanding more productivity in their PACs. The Modicon M340 PAC supports advanced communications such as enhanced Ethernet/IP which support Ethernet/IP, Modbus TCP/IP, and daisy chain loop communications on the same four-port, rack mounted switch module. It will also support DNP3.0 in serial or Ethernet in a rack-mounted RTU module. The Modicon M340 PAC is programmed with Unity Pro software, which allows users to dramatically reduce setup time and effort with features like drag 'n drop CANopen bus setup and standard IEC 61131-3 language selection

The Modicon M340 offers in a small form factor, flexibility and integrated functions. In the heart of your process, it provides plug-and-play solutions with both Schneider Electric and third party devices. The large capacity of Unity Pro SoCollaborative software will ease and shorten programming and commissioning time. Standard and Performance processors from the Modicon® M340™ automation platform manage an entire PLC single-rack or multi-rack station on which slots can be equipped with:
- Discrete I/O modules
- Analog I/O modules
- Application-specific modules (counter, motion control, Ethernet Modbus®/TCP communication)

Features:

  • 7 Kinst/ms
  • Multitasking system for guaranteed reflex time
  • Programmed with Unity™ Pro software
  • USB port for programming and HMI
  • Two additional ports as required: Ethernet, CANopen®, Modbus™
  • Programming code up to 70 Kinst
  • Application back-up in supplied memory card
  • Additional file storage up to 128 MB with FTP access
  • Extended temperature (-25°C 70°C) and conformal coating for operation in harsh environments
  • Protection of SI and OEM 'know-how' by use of SD card technology
  • Replace or 'Hot-swap' I/O Modules without stopping process
  • CCOTF - Configuration Change On The Fly. No need to stop the process to expand system
  • FTD/DTM configuration tools for 'plug 'n play' device integration. Simplifies configuration, commissioning, and maintenance
  • Takes full advantage of the flexible Modicon X80 I/O platform. Over 80 modules
  • No battery required

    Applications:
  • Process industries
  • Renewable energies (Solar, Wind power, ...)
  • Water, Cement
  • Manufacturing
  • Infrastructures
  • Machines
