PV10-30A1500VDCgPV, GpV Solar Fuse 30Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539

PV10-30A1500VDCgPV, GpV Solar Fuse 30Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539

$ 13.90

$ 0.00

Title:
  • DefaultTitle
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

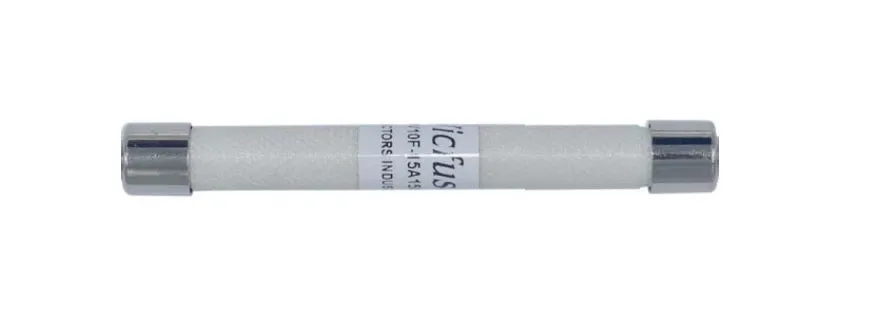

PV10-30A1500VDCgPV, GpV Solar Fuse 30Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539

Features

  • Meets the new UL and IEC photovoltaic standards
  • UL Recognized for 1000 VDC
  • High breaking capacity of 10 kA @ 1000 VDC
  • Low min. interrupting rating of 1.35 x In
  • Meets the requirements of IEC 61730-2 for PV module safety

Applications

  • All photovoltaic applications
  • Inverters
  • Battery charge controllers
  • In-line protection
  • String fuses




    Specification
    Vicfuse Part Number 8020.2053
    Fuse Type I²t  GpV Class Fast Blow
    Nominal Voltage 1000VDC, 275VAC
    I²t Rating (Pre-Arcing) 3150 A²/s
    Nominal Current (DC) 30 Amp
    Tested Breaking Capacity 10kA @1000VDC
    Dimensions 10.3 x 38mm
    Fuse Holder


    Mounting Style Requires fuse holder
    Operating Temperature Range -40°C / 125°C
    Watt Loss 1.8W
    DC Breaking Capacity 10kA
    Unit Weight 8g
    Factory Pack Qty 10



    Datasheet
