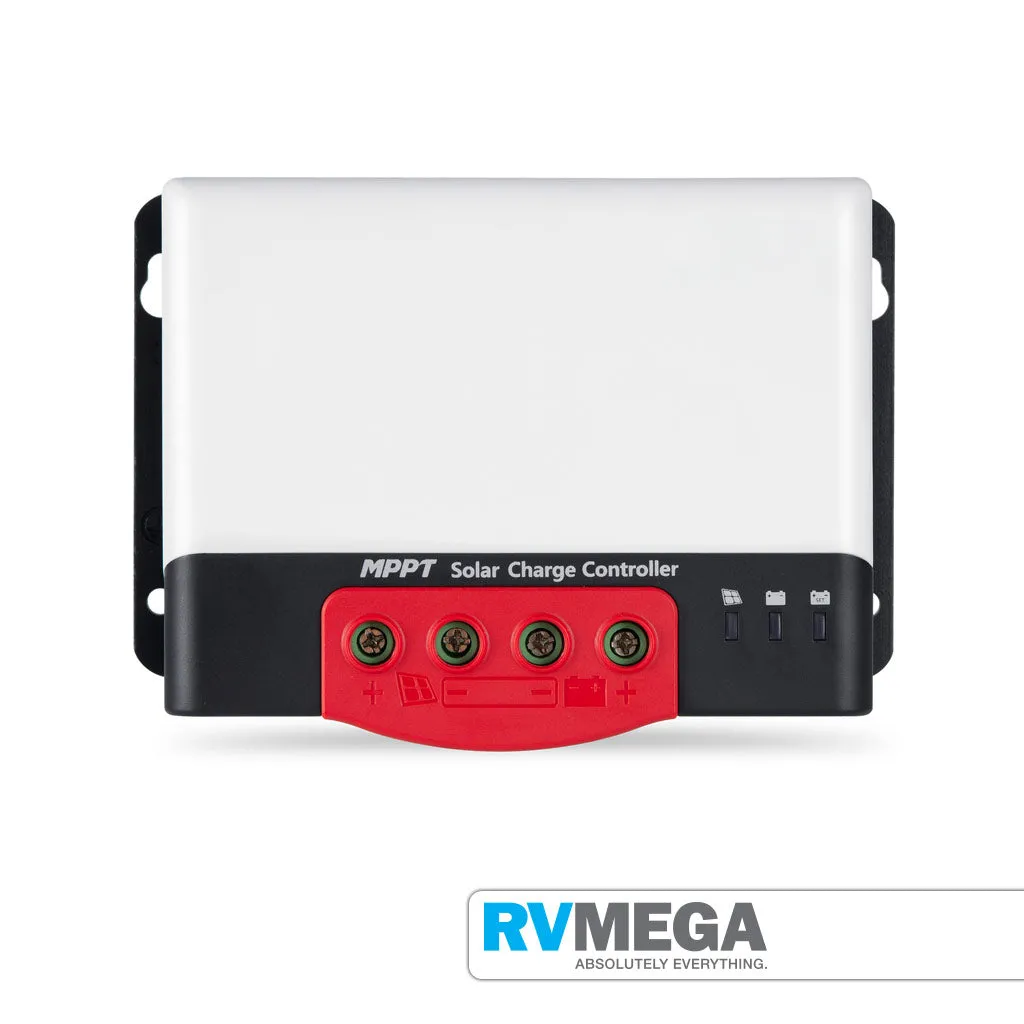

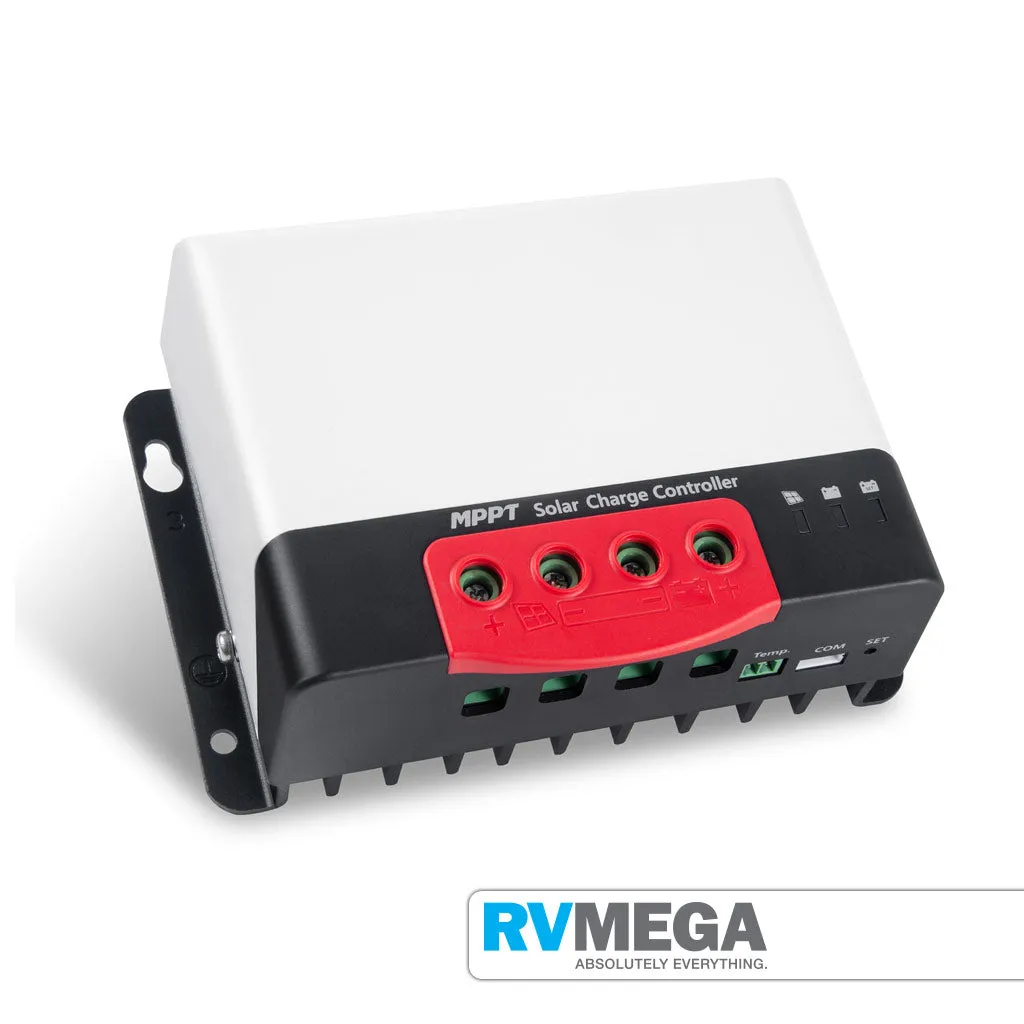

MC SERIES 20A MPPT charge controller. Supports multiple battery types and charging profiles including 12V/24V Lithium LiFeP04, Flooded, GEL, Sealed and User Defined Profile. Auto Protection and temperature modes, Auto load control functions. Fast and effective charge control.

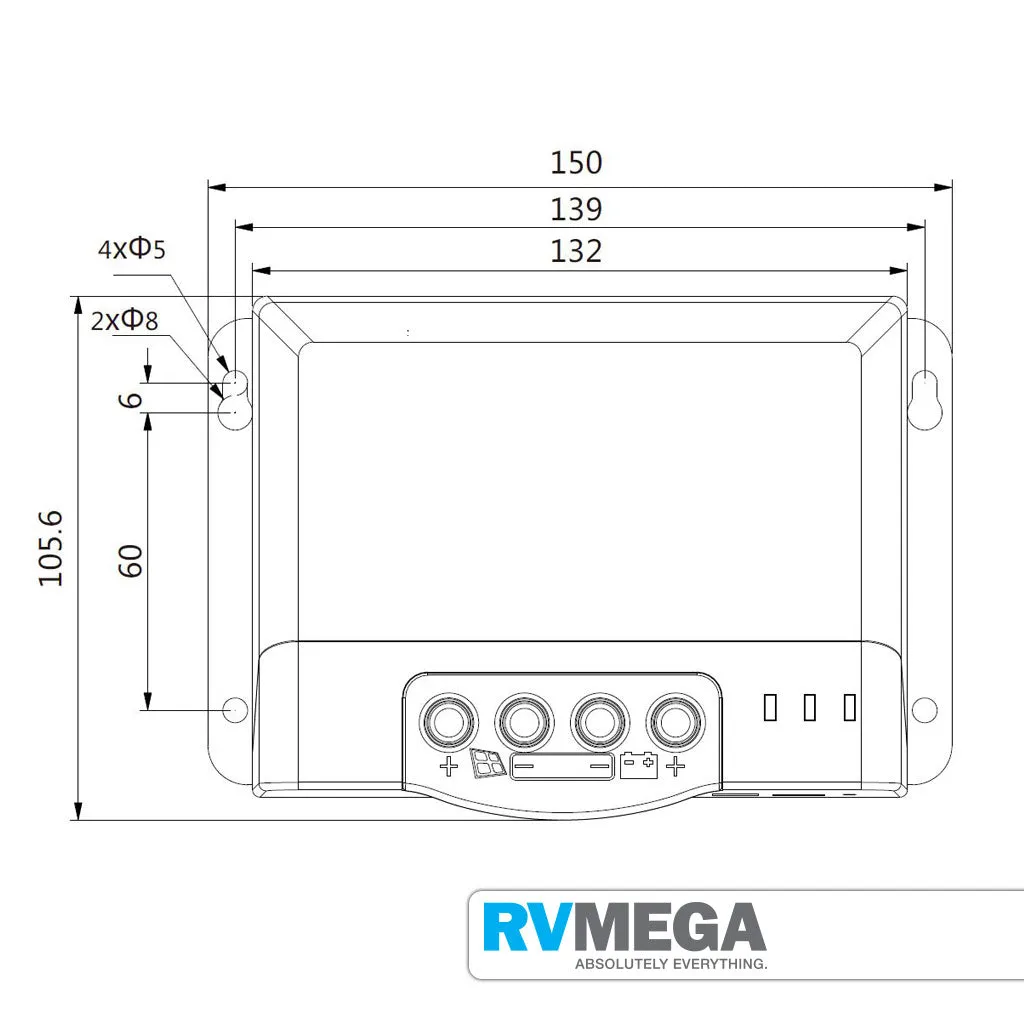

Dimensions
- W150 x H105 x D62mm
Technical Specifications
Operating Voltage: 12V / 24 (Automatic Detection)
Max Input Voltage of PV Panel: 100V
Max PV Input Power: 260W (12V) / 520W (24V)
Stand by self consumption: <10mA
Charge current: 20A
Conversion Efficiency: 98%
MPPT Tracking Efficiency: 99%
Battery Type | Flooded (FLD) | Sealed (SLD) | GEL (GEL) | Lithium (Li)
Equaliszing Charge Voltage: Flooded (FLD) 14.8 | Sealed (SLD) 14.6 | GEL (GEL) - | Lithium (Li) -
Boost Charge Voltage: Flooded (FLD) 14.6 | Sealed (SLD) 14.4 | GEL (GEL) 14.2 | Lithium (Li) 14.4V
Float Charge Voltage: Flooded (FLD) 13.8 | Sealed (SLD) 13.8 | GEL (GEL) 13.8 | Lithium (Li) -
Communication method: TTL Serial Communication
IP Rating: IP32
Working temperature: -35°C ~ 60°C
Weight: 650gms
