Fitment Information

• 1.2L / 1.4L TSI/FSI Engines

Specs & Features

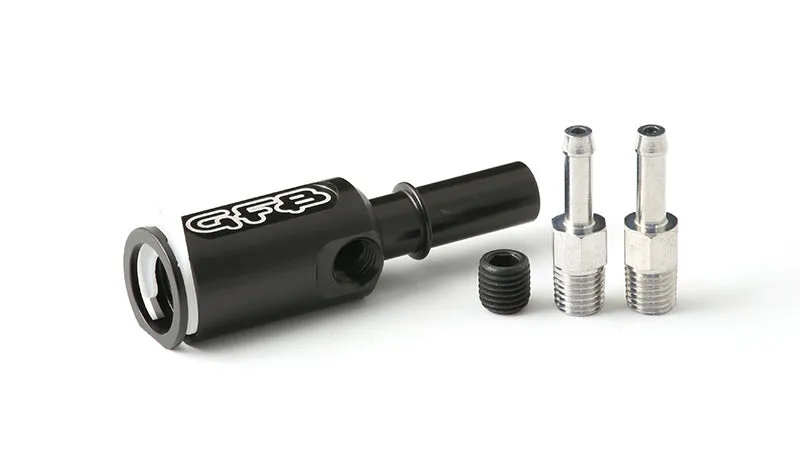

• Simply clips onto an existing hose port, no tools required.
• Features two 1/16”NPT ports, two 3/16” hose barbs, and a blanking plug for multiple configuration options.
• Uses a Viton O-ring to seal which is impervious to oil, and a billet 6262-T6 aluminium body with nickel plated brass hose barb.
• Anodized black and laser engraved with the GFB logo, making it look right at home in the engine bay.
• Removal is simple and leaves no trace that it was ever installed.
• CNC machined and made in Australia under QMS ISO9001

Most modern engines have eliminated vacuum ports from the intake manifold, making it difficult to install boost gauges, boost controllers, aftermarket blow-off valves and other devices that require a signal from the intake manifold.

GFB’s Gauge Port range allows a quick and tidy solution by tapping into existing features on the intake manifold to provide an extra reference port.
