32 Channel  Servo Motor Controller Board, Support PS2 WIFI with USB Cable

32 Channel Servo Motor Controller Board, Support PS2 WIFI with USB Cable

$ 57.03

$ 74.14

Save: $

Title:
  • DefaultTitle
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

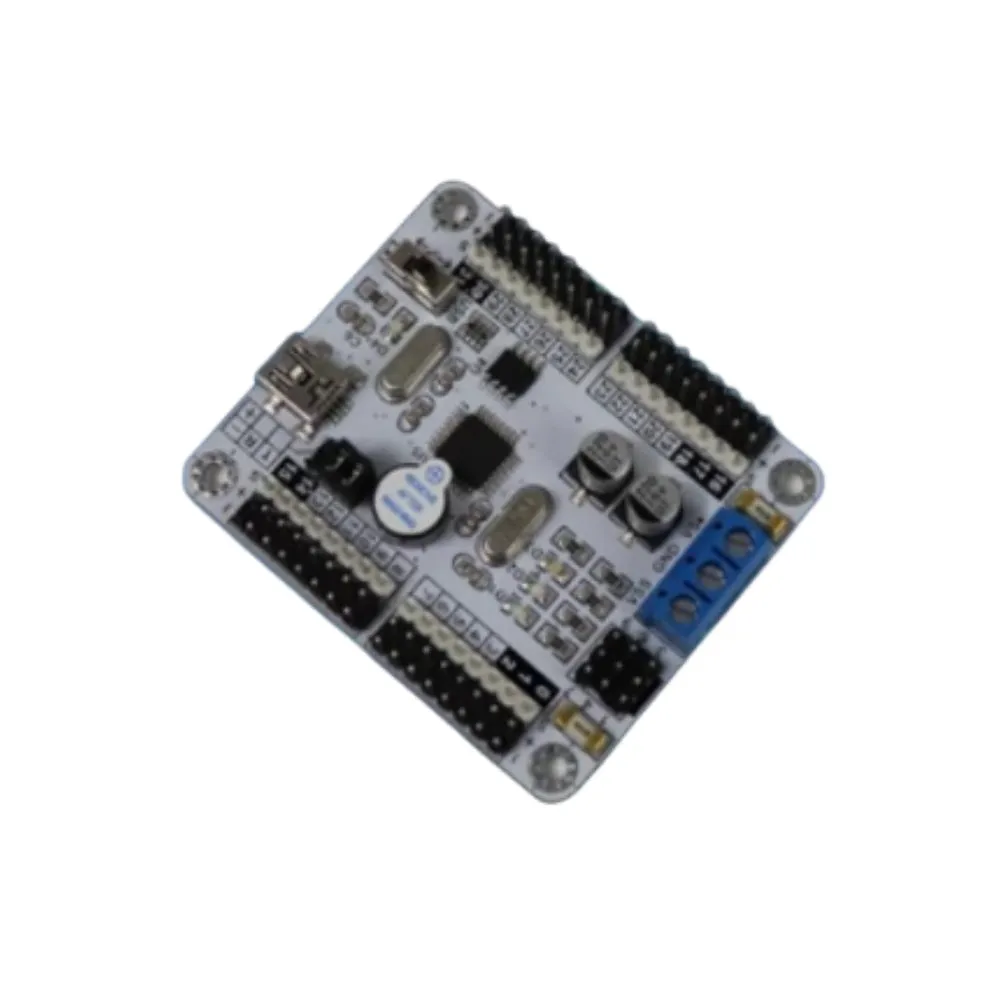

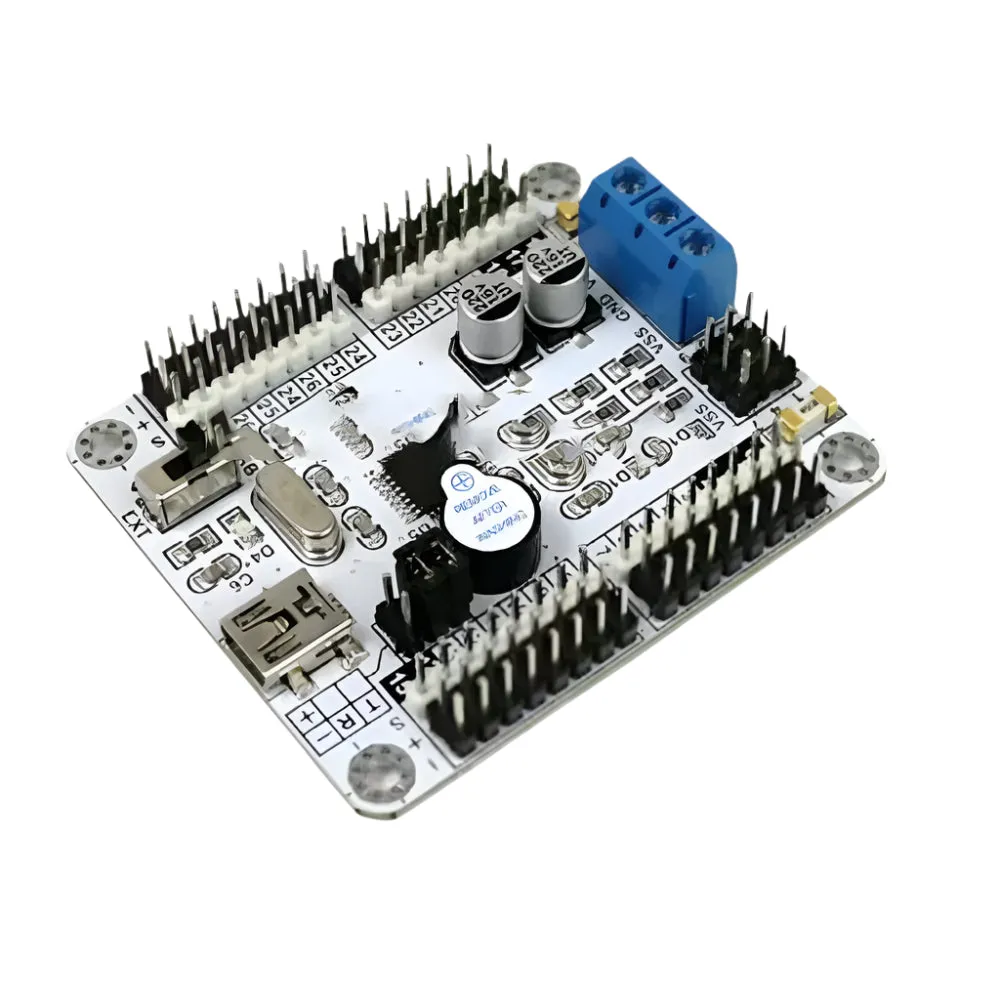

32 Channel Servo Motor Controller Board, Support PS2 WIFI with USB Cable

The 32-Channel Servo Motor Controller is equipped with a high-performance STM32 microcontroller featuring the ARM Cortex-M3 core, ensuring robust processing power and efficiency for controlling complex servo motor setups. With a 16MB high-capacity memory, this controller can hold up to 230 action groups, allowing for versatile and large-scale automation projects. It is specifically designed to manage up to 32 servo motors simultaneously, making it ideal for robotics, animatronics, and other advanced applications.

In addition to its powerful hardware, the controller features built-in over-current protection, which greatly reduces the risk of damage to the servo motors caused by locked-rotor conditions. This feature ensures reliable operation and prolongs the lifespan of the motors. The controller also comes with PC software that supports online graphical debugging, providing users with an intuitive interface for real-time adjustments and fine-tuning of servo actions. This combination of powerful hardware, protective features, and easy-to-use software makes the 32-channel servo controller an excellent choice for both professional and hobbyist projects.

Technical Details

  • Dimensions: 61mm × 52mm
  • Mounting hole position: 44.5mm × 53.5mm
  • Communication interface: MiniUSB
  • Control channel: 32 channels
  • Remote control handle: Supports external
  • Supports external Bluetooth module
  • Supports extension MP3 module
  • WIFI module - Supports extension
  • Wireless module - Supports extension
  • Power switch - External power switch
  • Voltage alarm - Support
  • Secondary development - Support
  • Serial communication - Support
  • Local storage - Support
  • Run offline - Support

32-channel controller

  • Supports handle action group remote control and real-time remote control.
  • Supports Bluetooth WIFI communication extension, MP3 music extension, and wireless mode block synchronization extension.
  • Supports secondary development of an external monolithic machine, with a reserved serial communication interface.
  • Supports automatic detection and alarm of low power supply voltage, and includes download and store action groups, graphical debugging interface.
  • Multiple voltage regulation protection circuit design, signal isolation protection, anti-overcurrent, and anti-surge.
  • Detailed electronic materials and video tutorials, designed as a zero-based fun machine controller.

Interface Diagram

Power Supply connection

Secondary Development

Detailed Display:

Applications :

  • Smart Car Control: Used to control smart cars and robotic vehicles with precise movement.
  • Mechanical Arm Robotics: Enables control of mechanical arms for various tasks such as assembly, handling, and manipulation.
  • PS2 Remote Control: Supports PS2 handle remote for seamless user control of robotic systems.
  • Servo Motor Control: Provides precise control over 32 servo motors for applications requiring complex motion.
  • Automated Systems: Used in automation projects, including robotic systems and smart home automation.
  • Educational Projects: Ideal for educational purposes in robotics and electronics courses, teaching control systems.
  • Prototyping and Testing: Useful for prototype development and testing of robotic mechanisms and systems.

Physical Attributes

  • Weight (gm): 50

Package Includes

  • 1 x Servo Controller 32 channel

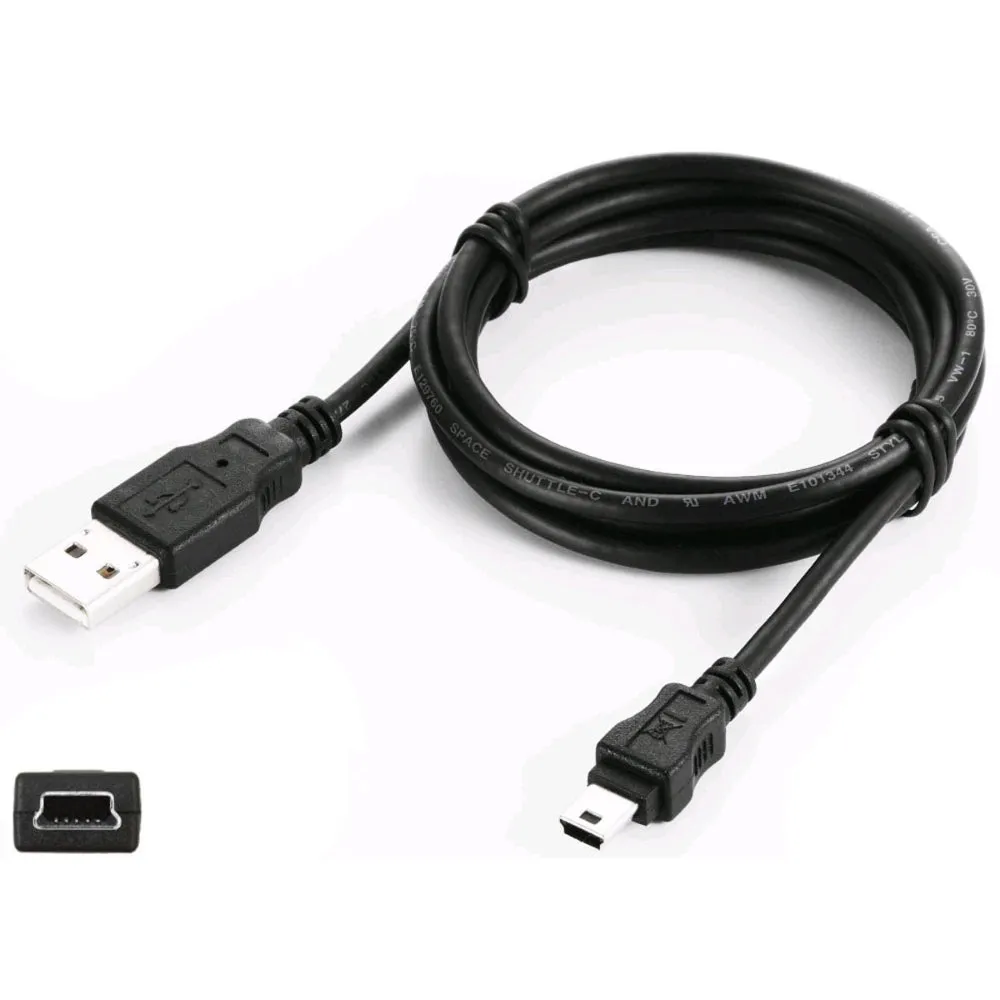

  • 1 x Mini-USB Cabel
